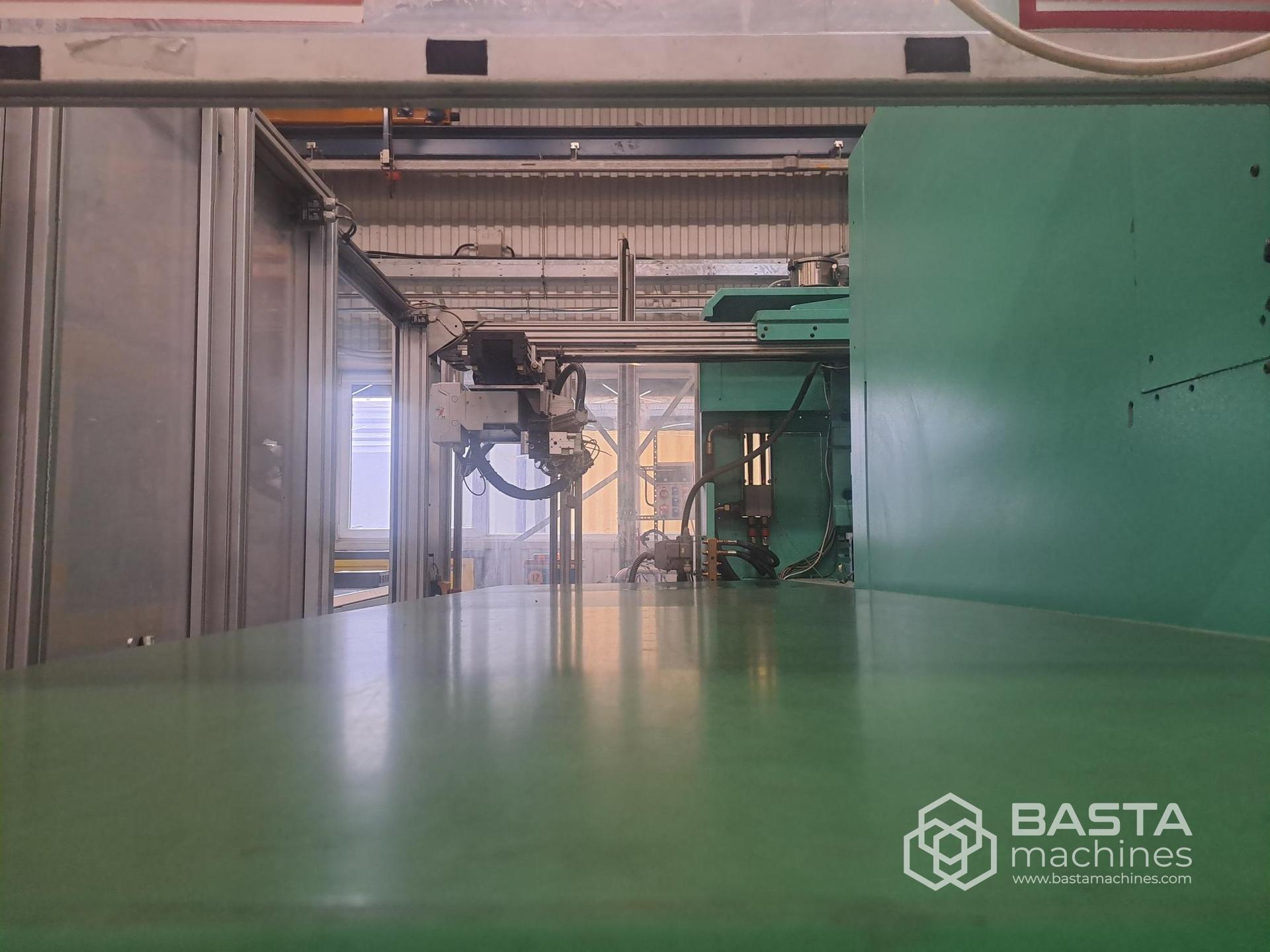

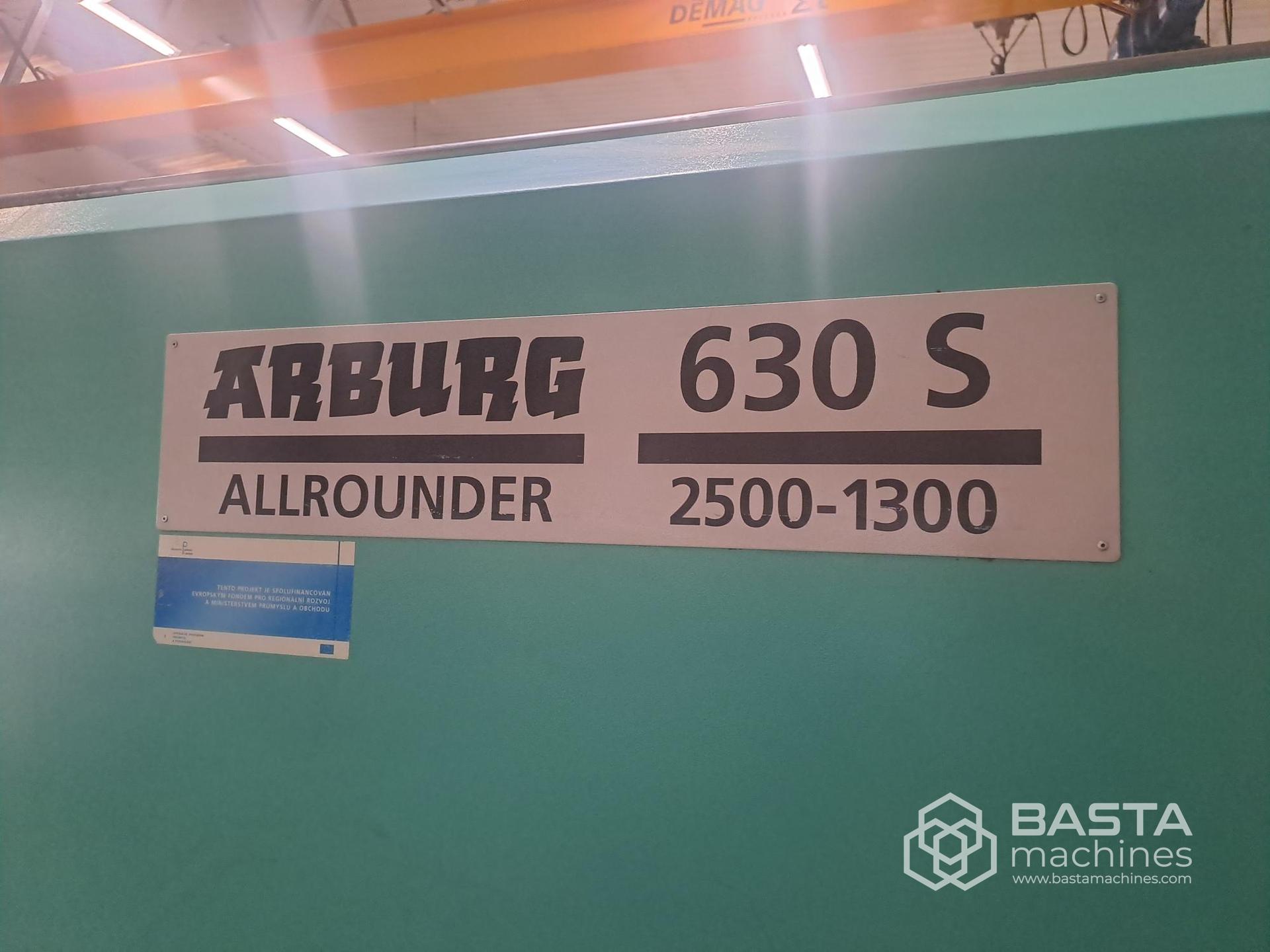

Arburg 630 S 2500 - 1300 with robot Multilift H mit B-Actise (2004)

Arburg 630 S 2500 - 1300 with robot Multilift H mit B-Actise (2004)

Clamping force: 250 t

Tie-bar spacing: 630 × 630 mm

Platen size: 900 × 900 mm

Mold height (Min / Max): 300 – 700 mm

Maximum daylight (open space): 1,300 mm

Opening stroke: 600 mm

Ejector stroke: 225 mm

Ejector force: 86 kN

Screw diameter: 55 mm

Shot volume: 558 cm³

Injection pressure: ~2,380 bar

Number of heating zones: 12

Control system: Selogica

Machine dimensions: 6.4 m × 2.1 m × ~2.2 m (L × W × H)

Machine weight:  14,000 kg

Installed power / electricity: ~68 kW

Robot / automation interface: Euromap 2500‑1300

Core pullers: hydraulic
