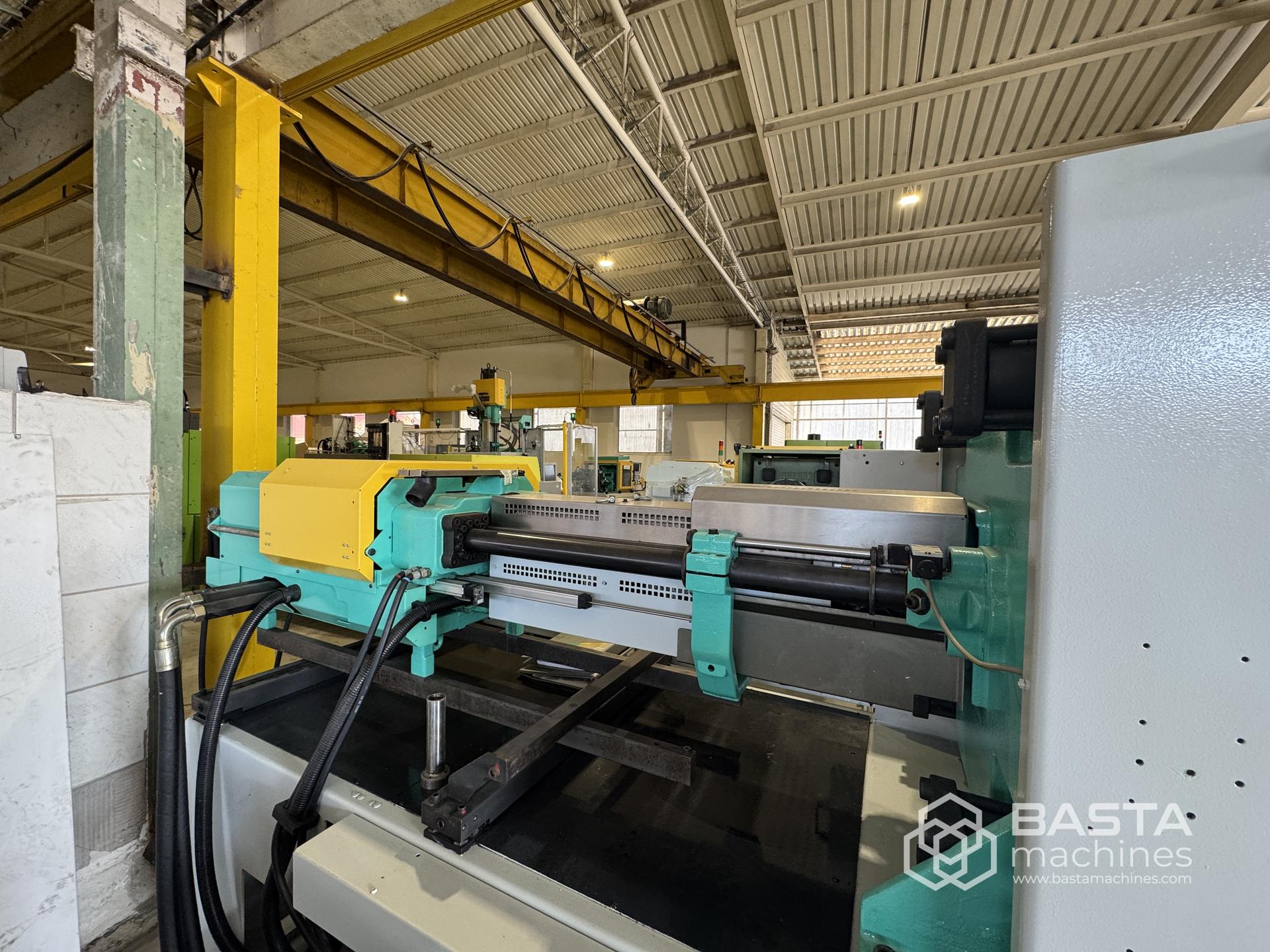

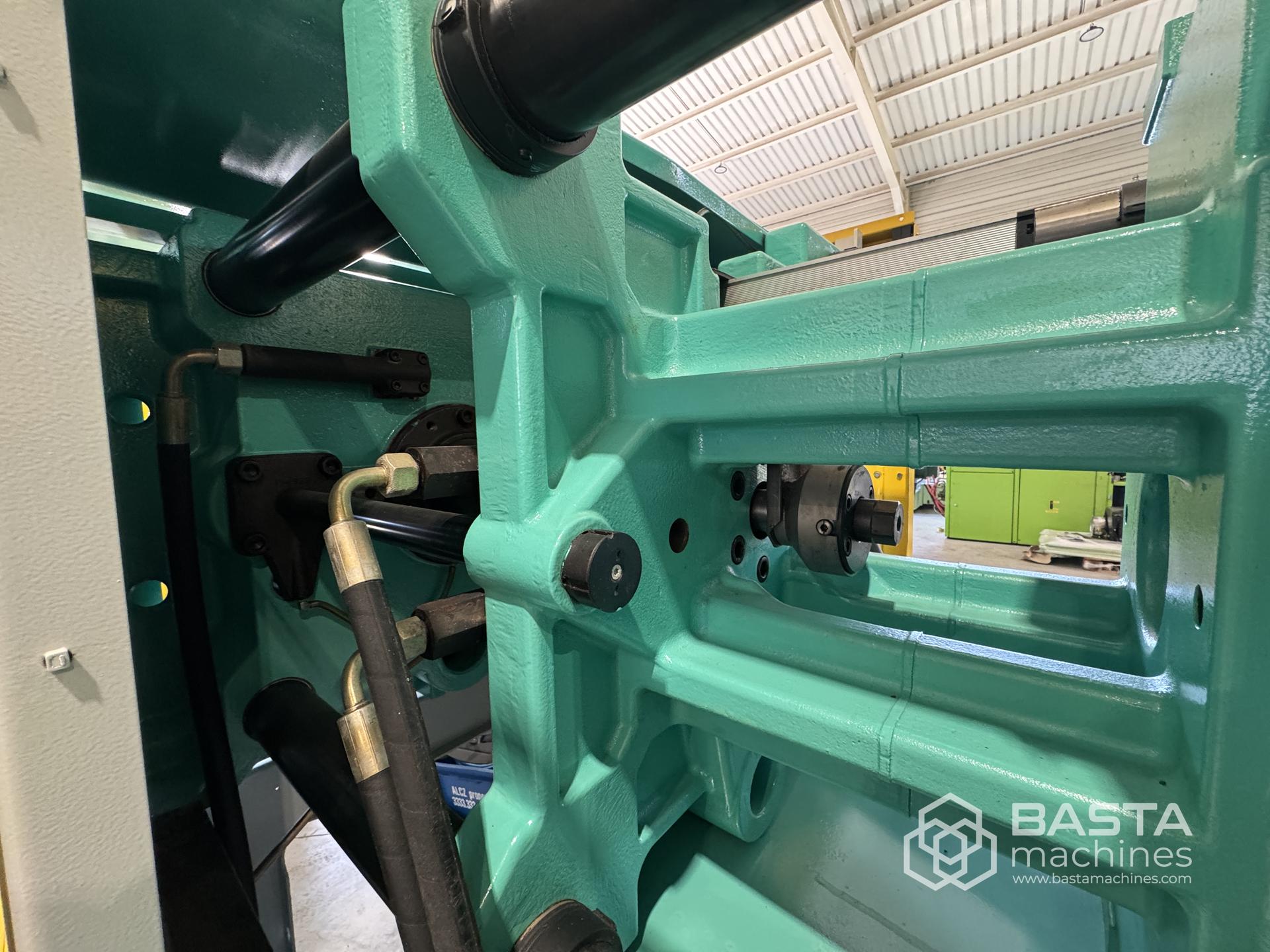

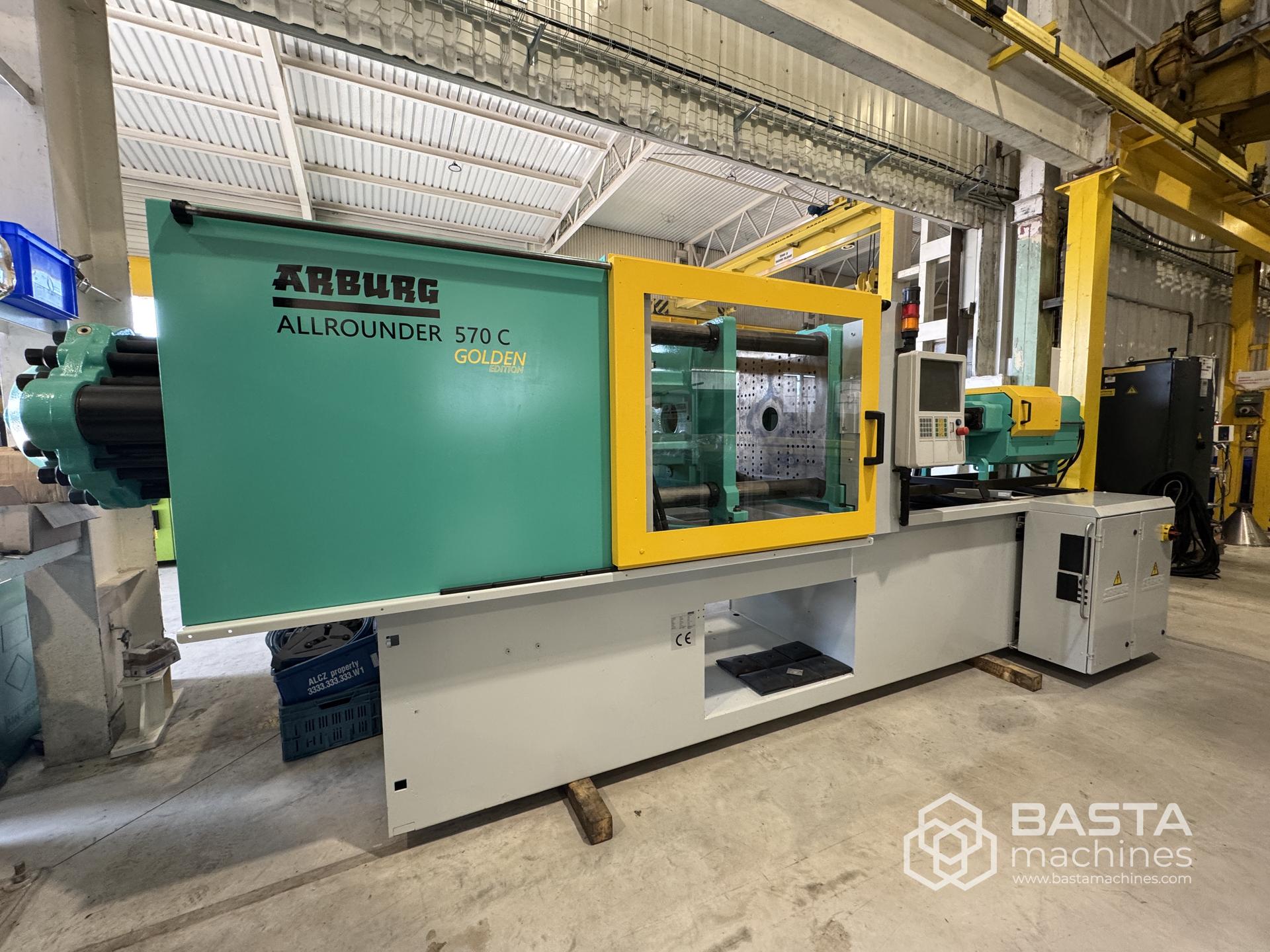

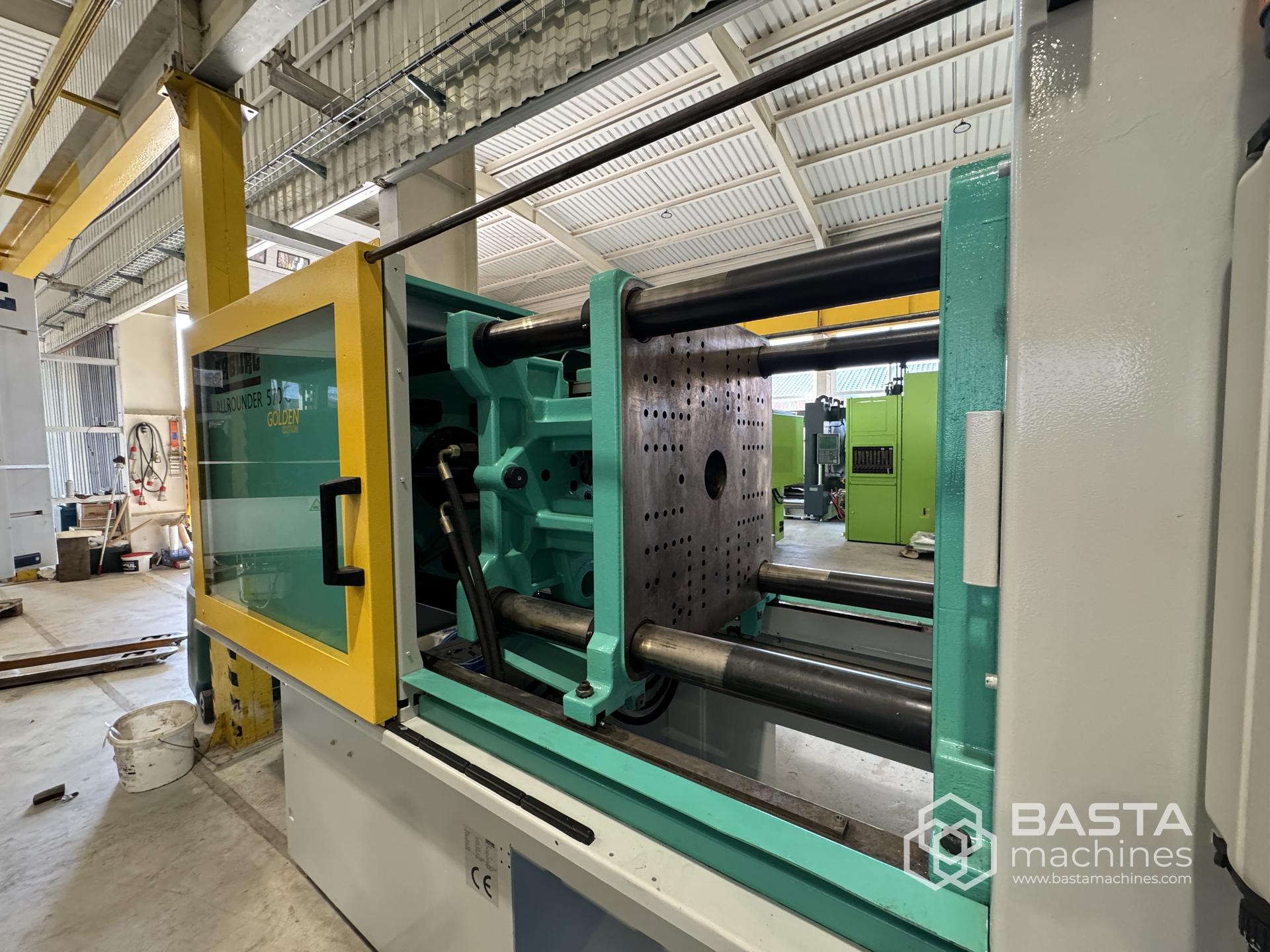

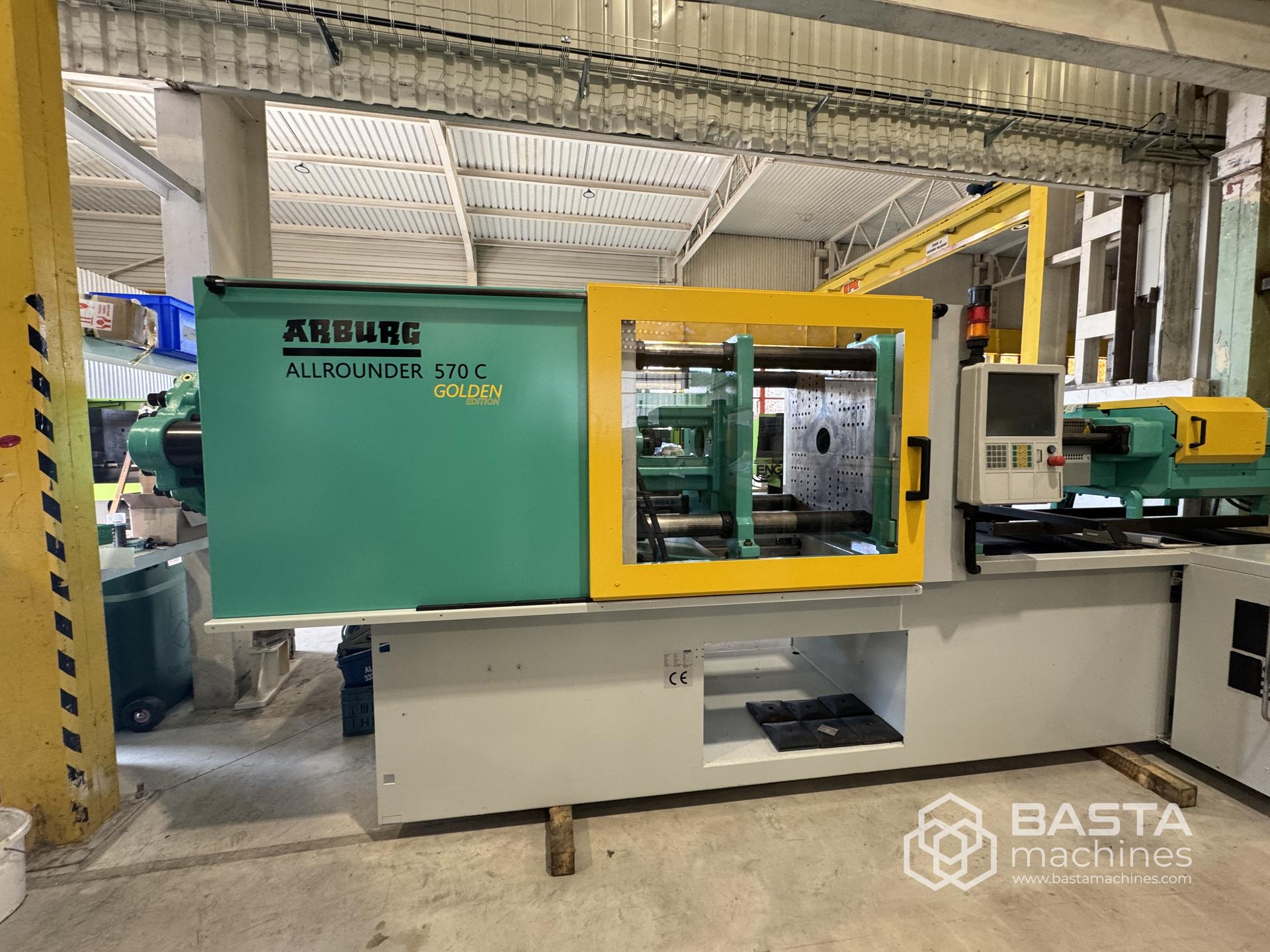

Arburg 570C 2000-800 (2007) golden edition

570C 2000 - 800

Clamping force: 200 t

Screw diameter: 50 mm

Drive: Hydraulic

(2007) Arburg ARBURG 570C 2000-800 Golden edition

Clamping/injection matrix

Clamping force [kN] 2000

Mounting plate dimensions (hxv) [mm] 795 x 795

Clearance between columns (hxv) [mm] 570 x 570

Injection unit

Screw diameter [mm] 50

Injection volume [cm3] 392

Shot weight [g] 356

Injection pressure [bar] 2000

Electro-hydraulic equipment

Power rating of the pump motor [kW] 30

Power rating of barrel heating [kW]

14,9 Dimensions and weight (approximately)

Net weight with control cabinet [t] 7,9 Dimensions (L x W x H) [m] 5.53x1.79x2.20

Hydraulic system with 2 control pumps

Connection for air blow unit 1

Core pull movable platen

4 free cooling circuids manually adjustable

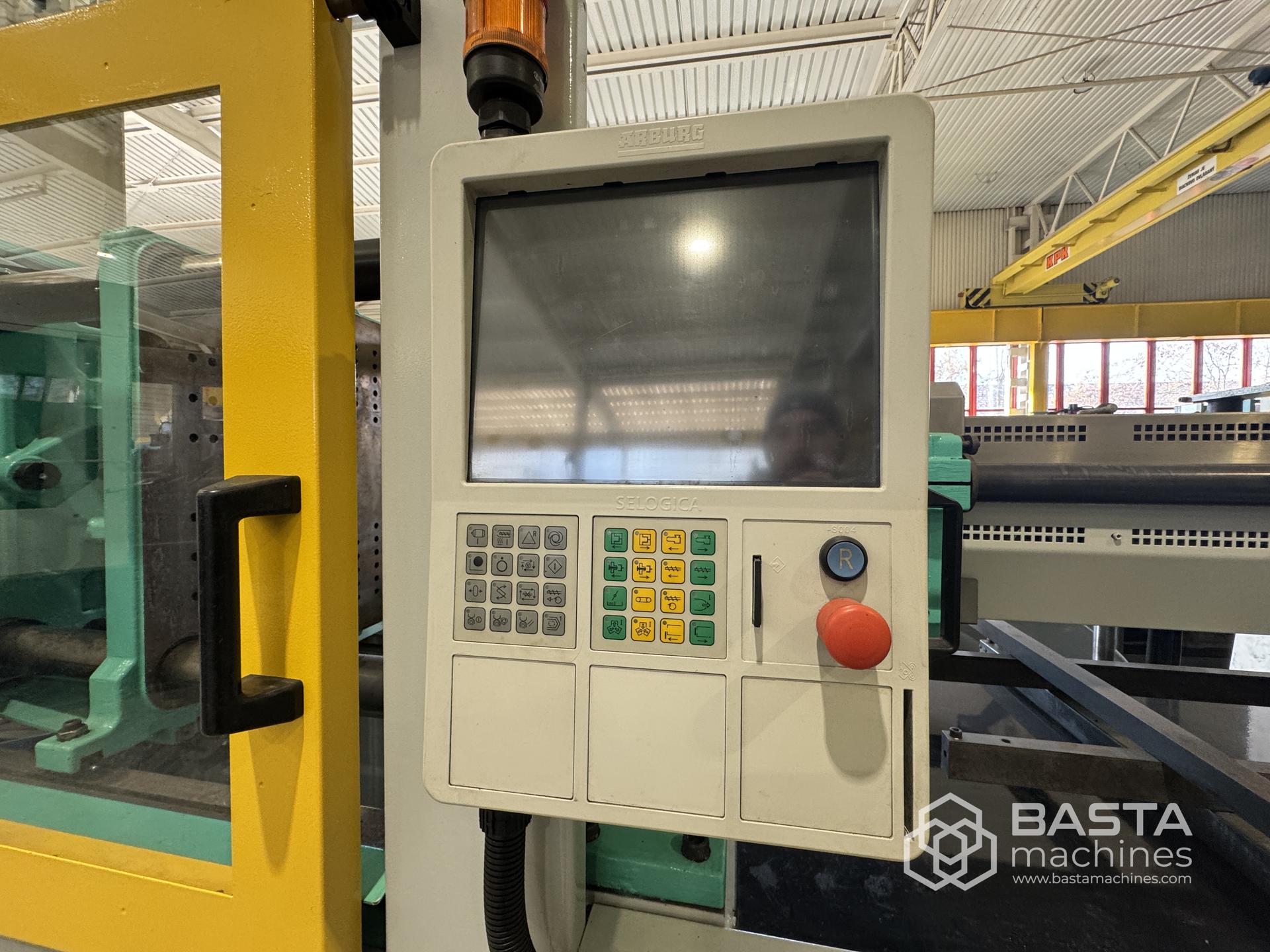

Selogica touchscreen.
