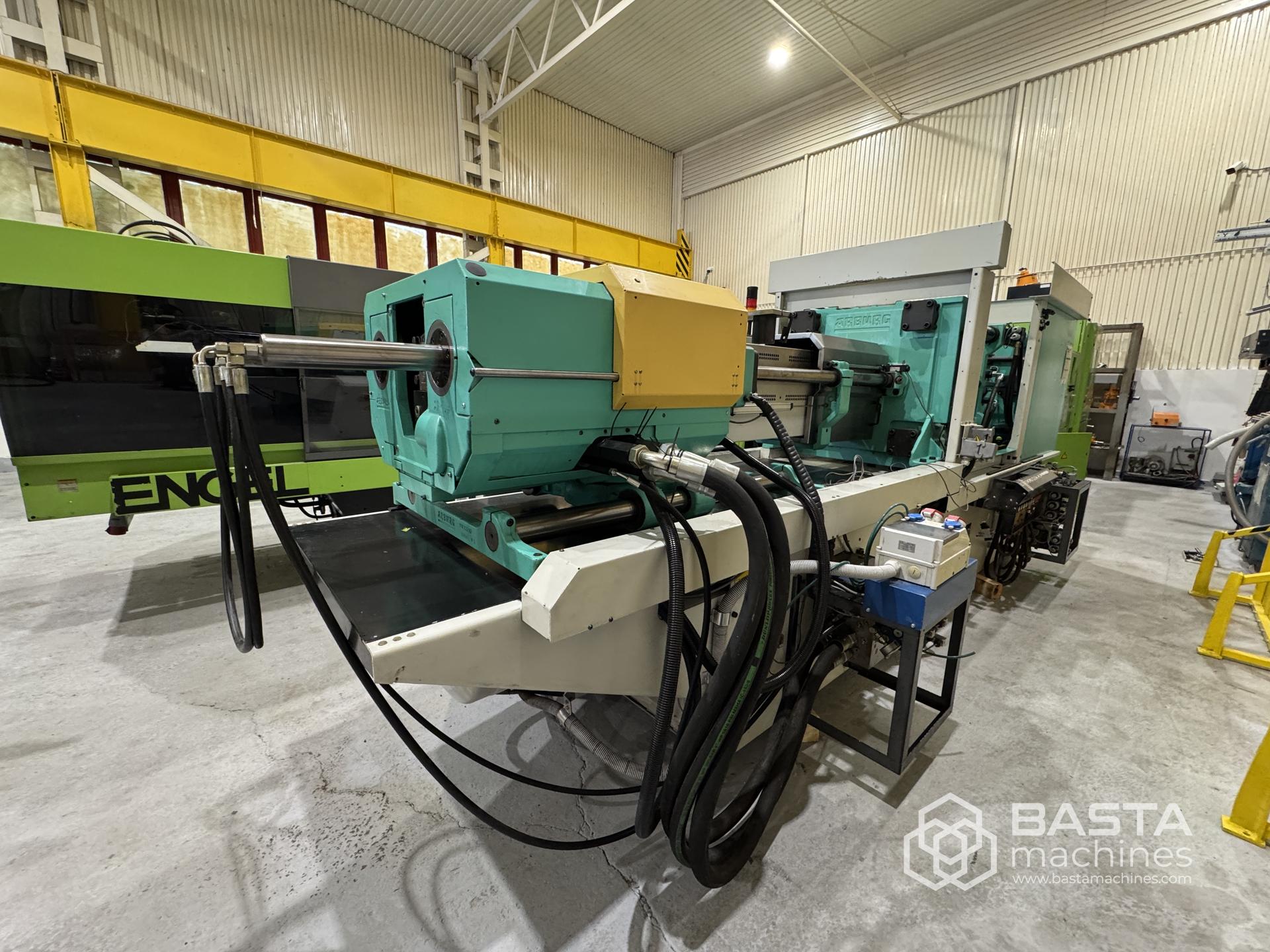

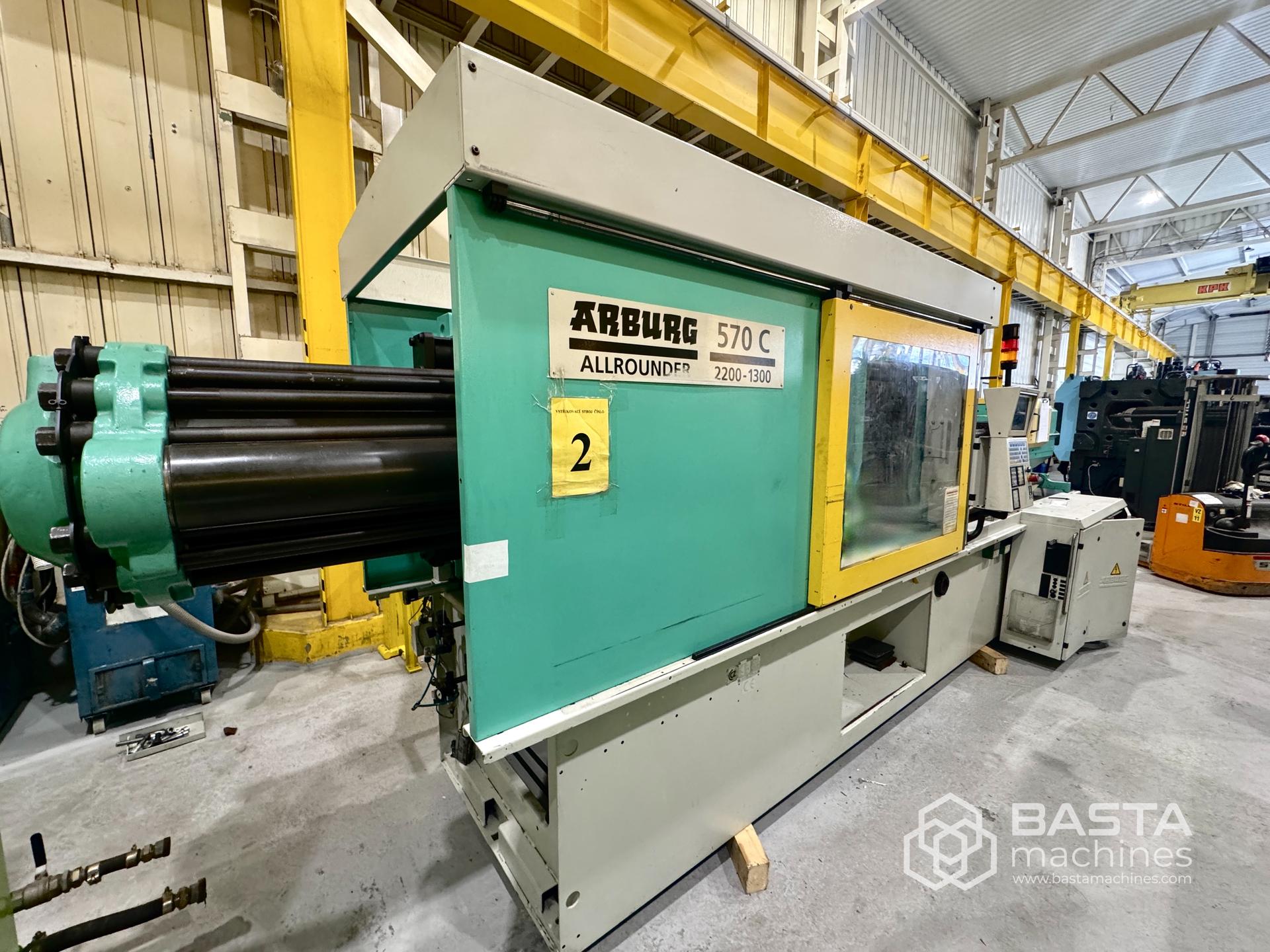

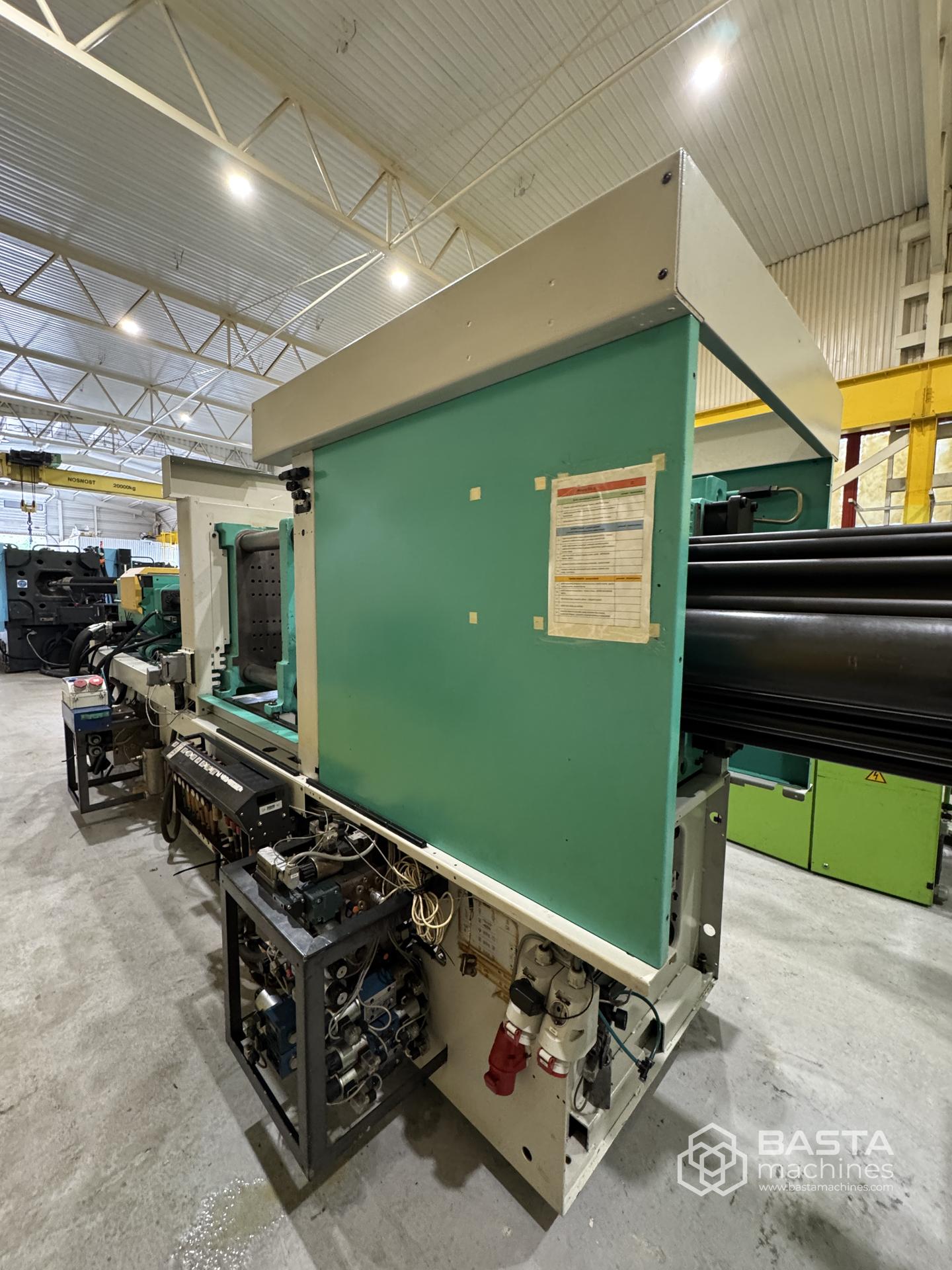

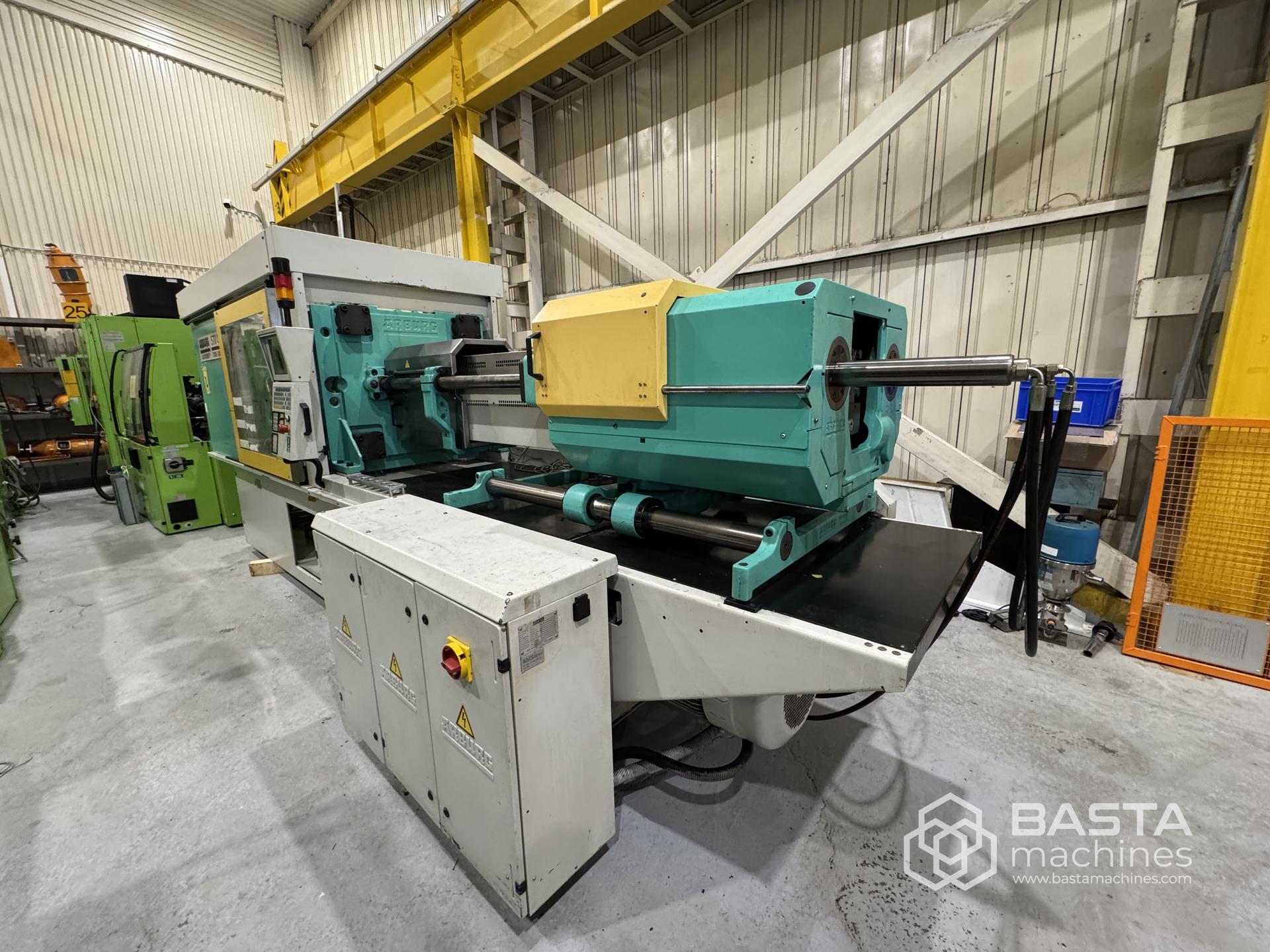

Arburg 570 C 2200-1300 (2001)

Arburg 570 C 2200-1300 (2001)

Clamping force - 220 ton

Screw diameter: 60 mm

Shot weight: 607 g/PS

Stroke volume: 664 cm³

Heating capacity: 23 kW

Opening stroke: 650 mm

Distance between bars: 570 mm

Mould height min: 300 mm

Mould height max: 950 mm

Size of mold platens: 795 x 795 mm
