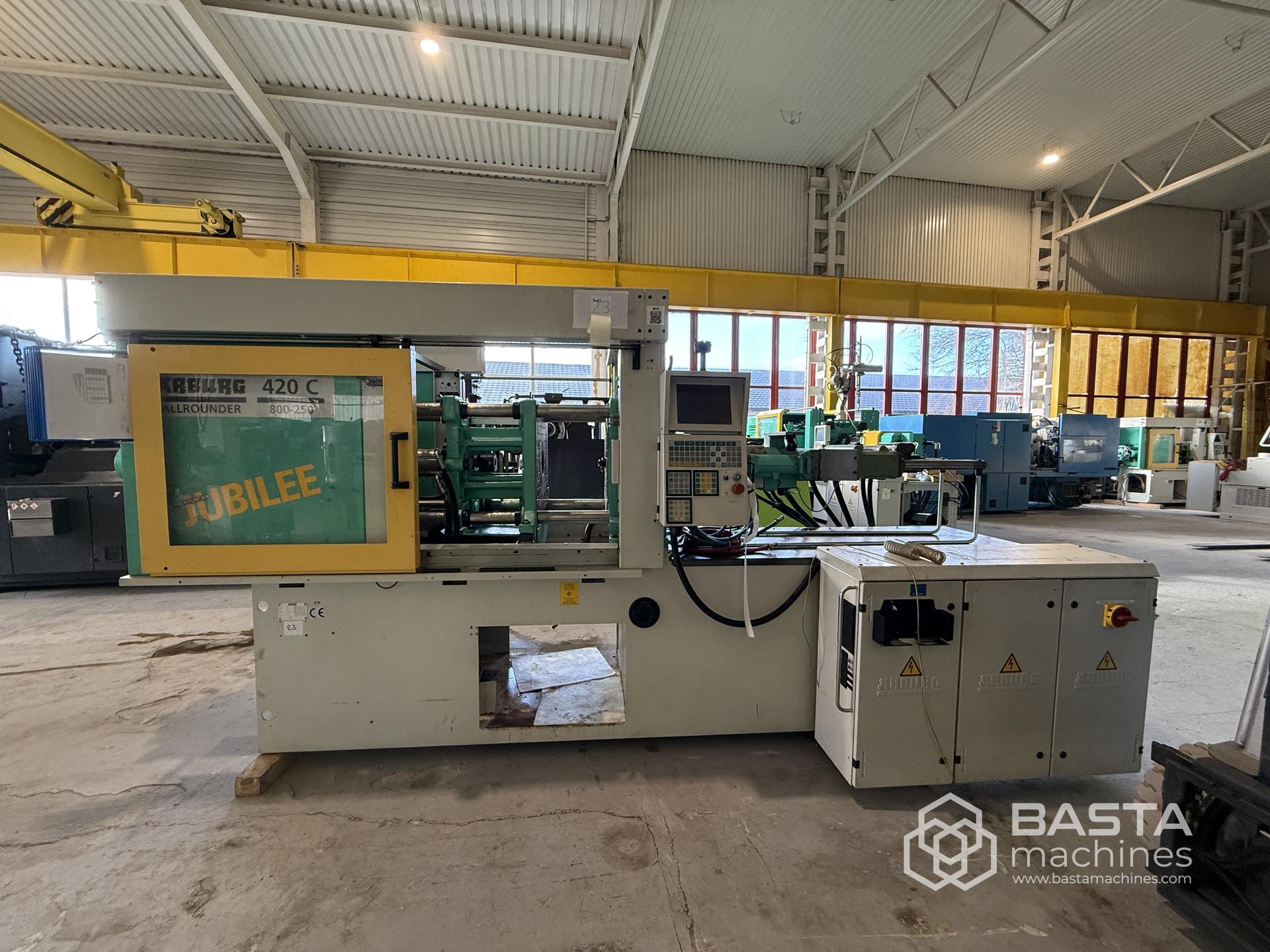

Arburg 420 C 800-250

Arburg 420 C 800-250

Clamping force : 80 t

Screw diameter : 30 mm

Distance between tie bars : 420 x 420

Platen size: 570 × 570 mm

Opening stroke:  500 mm

Max. daylight:  750 mm

Minimum mould height: 250 mm

Injection unit:

Shot volume : 144 cm³

Shot weight : 132 g

Shot volume : 188 cm³

Shot weight : 172 g

Injection pressure : 1820 bar

Injection pressure : 1390 bar

Machine dimensions:

Length: 4.2 m

Width: 1.7 m

Height: 1.8 m

Machine weight:

3,700 kg

Euromap : yes
