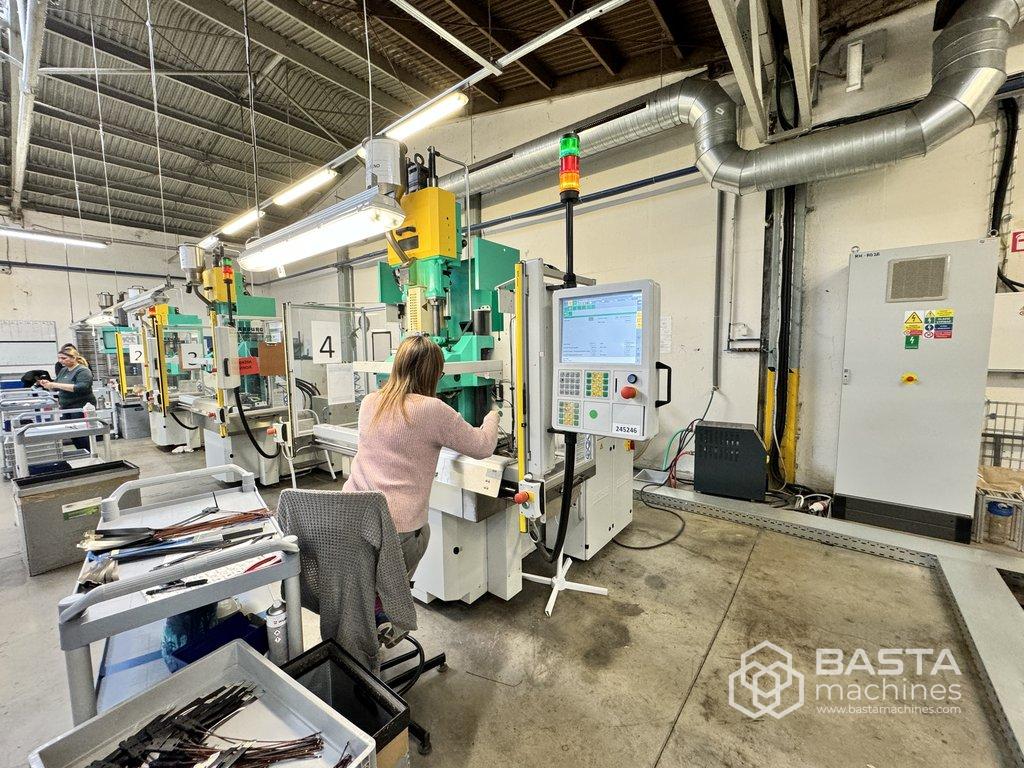

Arburg 275 V 250-70 Schiebetisch Vertical injection molding machine (2018)

Clamping force: 25 ton Version: Shuttle table Opening force/stroke min.- max. : 100/225 mm Mould height variable min.- max. : 122-222 mm Shuttle table stroke: 500 mm Wight on shuttle table. max. :120 kg Ejector force/stroke max. : 16/40 kN/mm Screw: 22 mm Effective screw length L/D : 20 Screw stroke max. : 90 mm Stroke volume: 34 cm3 Shot weight: 31 g Injection pressure: 2.000 bar Working hours: 15.571 h
