PLASTIC MACHINE

Arburg 1500T 2000-400 (2013)

checkmarkRoundExcellent
gearGrey2013
Overview
Condition
Excellent
Manufacturer
Arburg
Model
1500T 2000-400
Year
2013
Stock number
250136
Description
arrowDown

ARBURG 1500T 2000-400 (2013)


Clamping force: 200 t

Screw diameter: 40 mm

Shot volume: 201 cm3

Type: Vertical

Drive: Hybrid


Machine no.: 225999

Control system: Selogica

Cycles: 1,907,296

Automatic operating hours: 42,160

Condition: Functionally tested



🔩 Clamping Unit

Clamping force: 2,000 kN (200 tons)

Plate spacing: 700 mm

Tool installation height: 400 mm

Ejector force: 45 kN

Ejector stroke: 175 mm

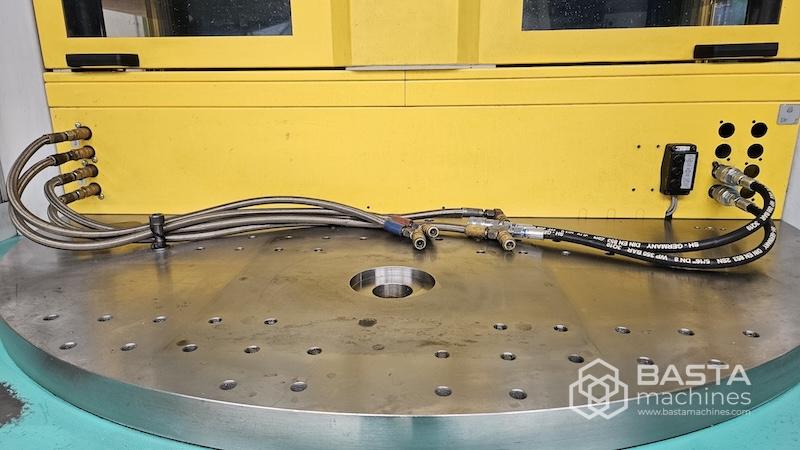

🔁 Rotary Table System

2-station rotary table, servo-electric drive

Rotation angle: 180° forward/backward

Rotation time (min.): 2.4 seconds

Table diameter: 1,500 mm

Max. load on rotary table: 1,050 kg

Hydraulic fixing pin for precise centering

Height-adjustable protective separation between clamping and insertion areas



🧩 Injection Unit

Screw diameter: 40 mm

Injection volume: 201 cm³

Injection weight (PS): 184 g

Injection pressure: 2,000 bar

According to EUROMAP 400



⚙️ Special Features & Configuration

• Special ergonomic rotary table model

• Corrosion protection for rotary table (VE 574/90)

Media connections on rotary plate:

• 2x water circuits

• 3x hydraulic circuits (for needle closure)

• 3x core pulls

Per station:

• 1x core pull

• 2x temperature control lines

• 6x mold temperature controls

• 12-zone tool heating circuits

• 2x Kistler internal pressure sensors

• Start-up part temperature query system



🔌 Power & Weight

Motor power: 22 kW

Heating power: 9.4 kW (5 zones)

Total connected load: 100 A

Machine weight: approx. 11,200 kg
