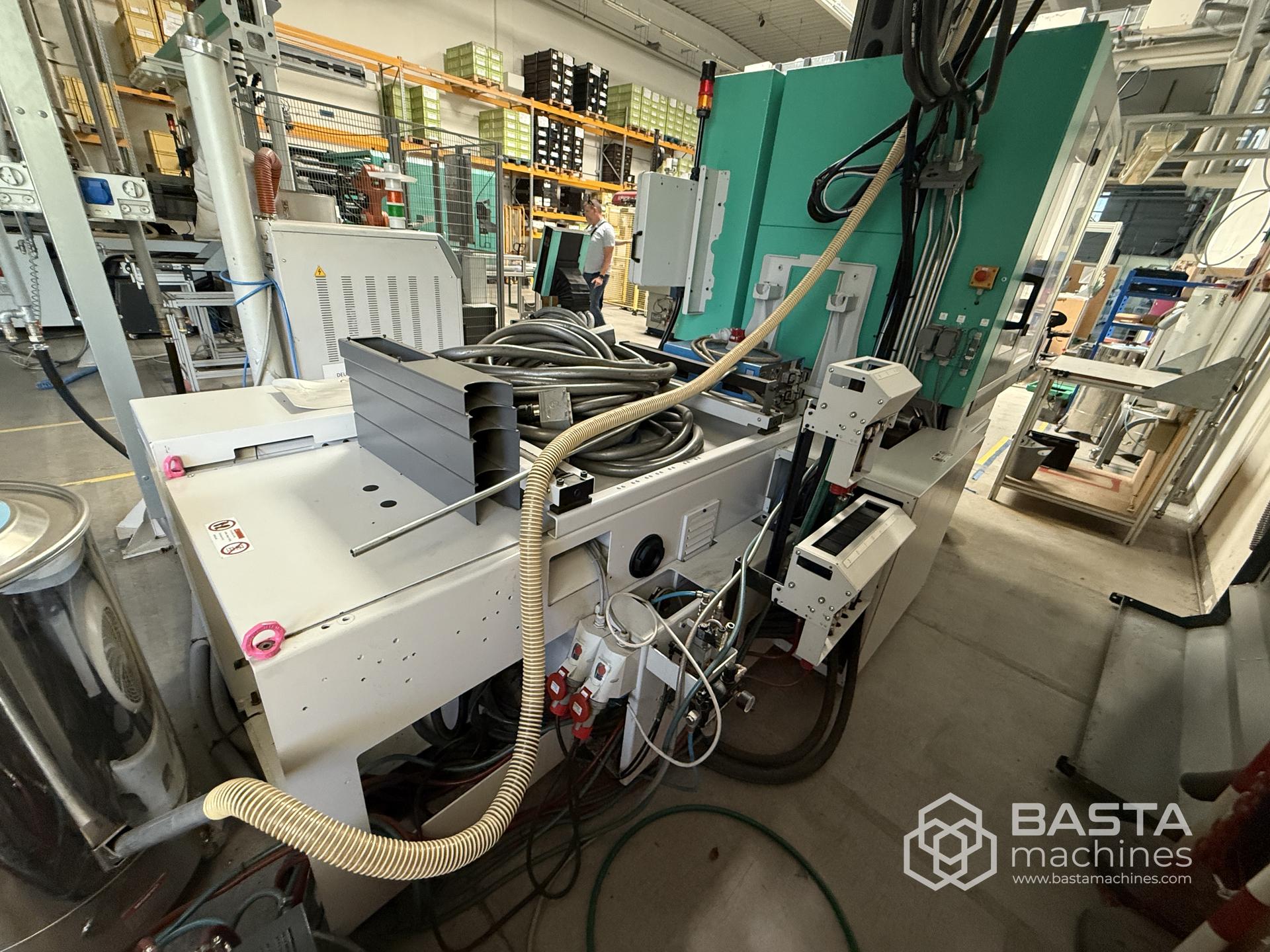

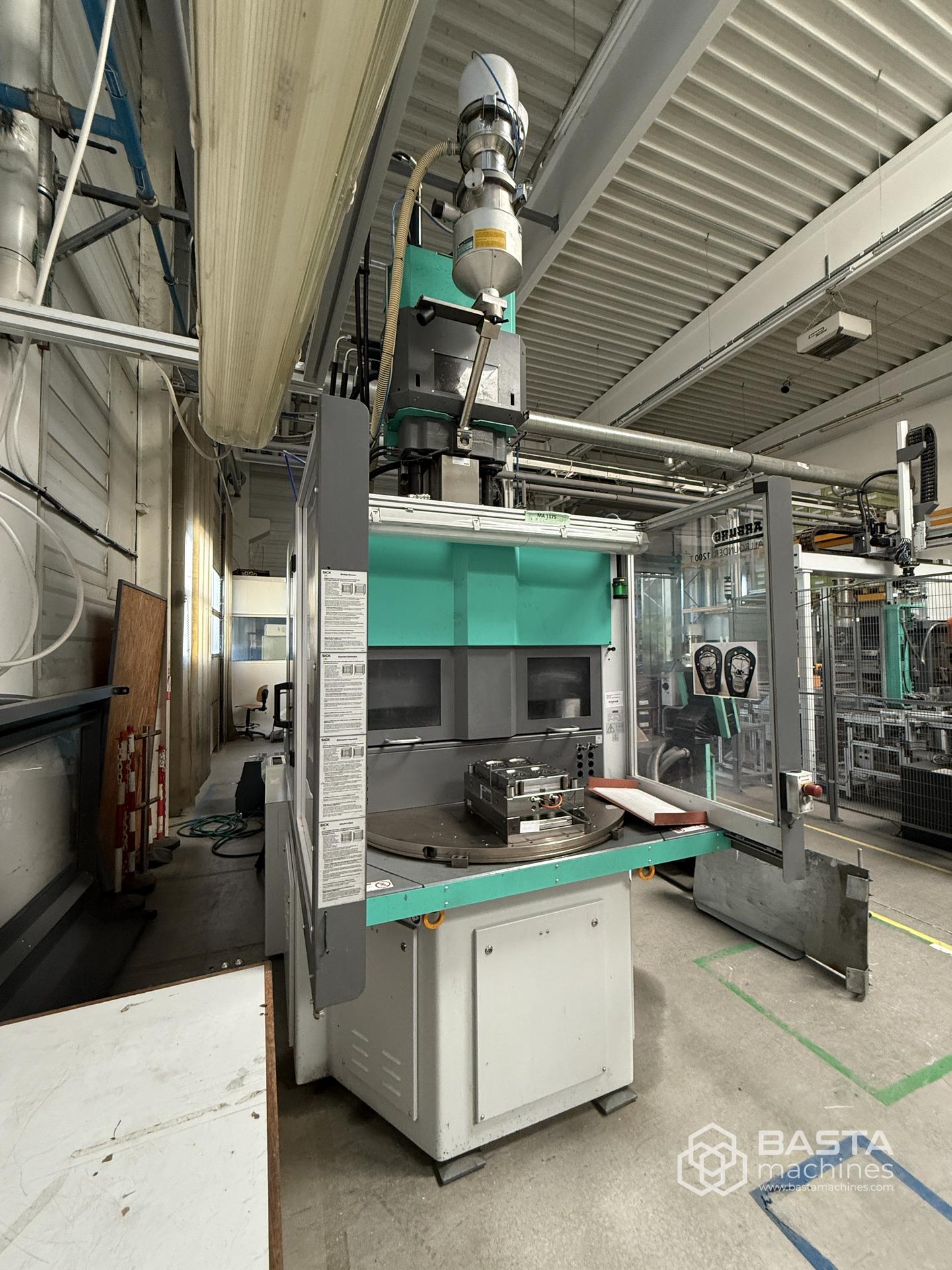

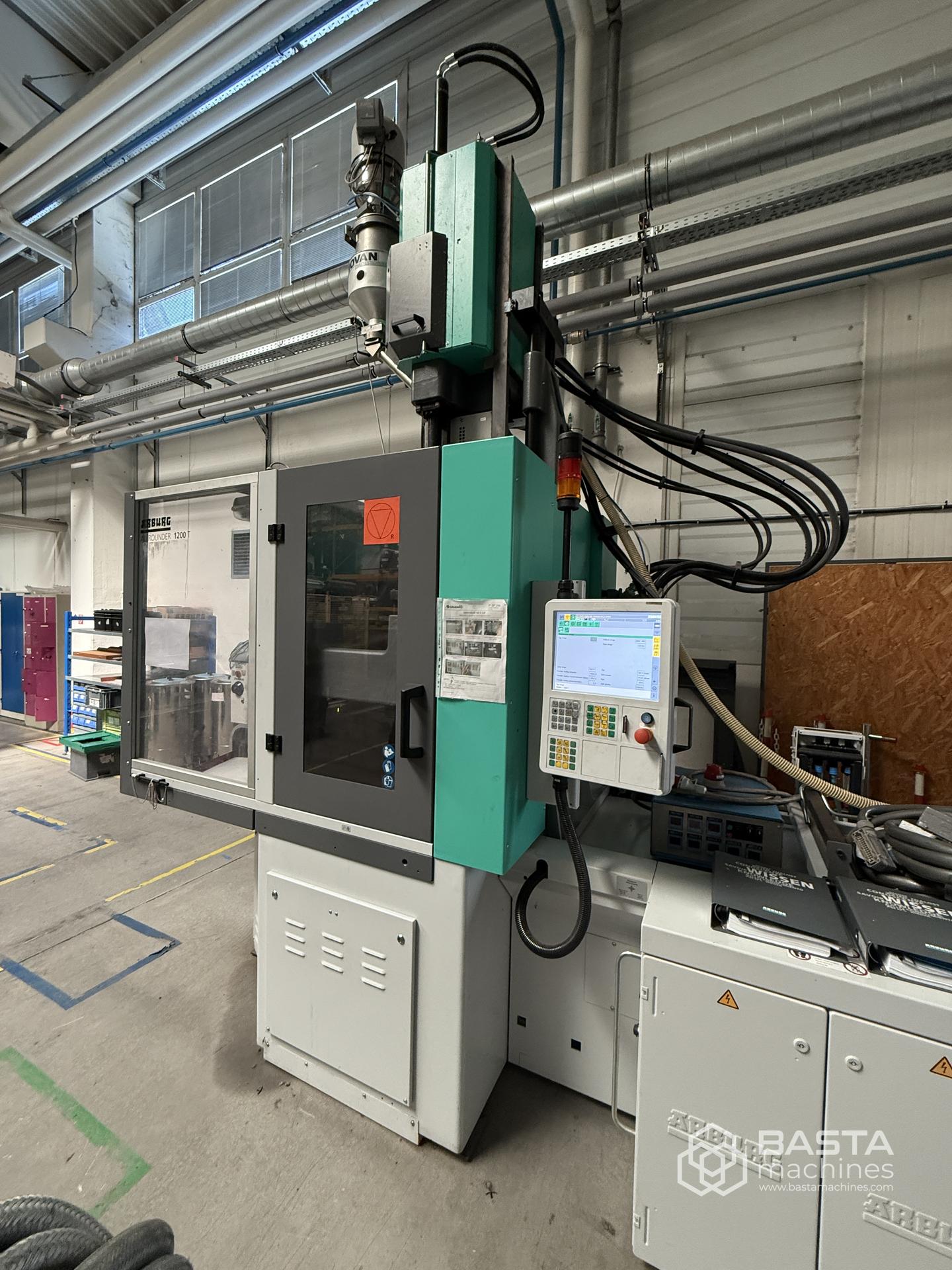

Arburg 1200T 2000-800 (vertical, rotary table,working hours: 9.562)

Arburg 1200 T 2000-800 (vertical machine with rotary table 1200mm)

Clamping unit 2000T

Table diameter: 1200mm

Angle rotation: 180 degrees

Clamping force: 200 tons

Opening force max. kN/mm: 115/500

Platen daylight max. : 600 mm

Injection unit

Screw diameter: 45 mm

Shot volume: 318 cm3

Shot weight: 291 g

Injection pressure: 2470 bar

1. Model: T model
2. Machine type: 1200 T 2000 - 800
3. Plasticizing unit: Thermoplastics cylinder 45 mm, highly wear-resistant
4. Screw: Reinforced screw coupling for splined coupling geometry

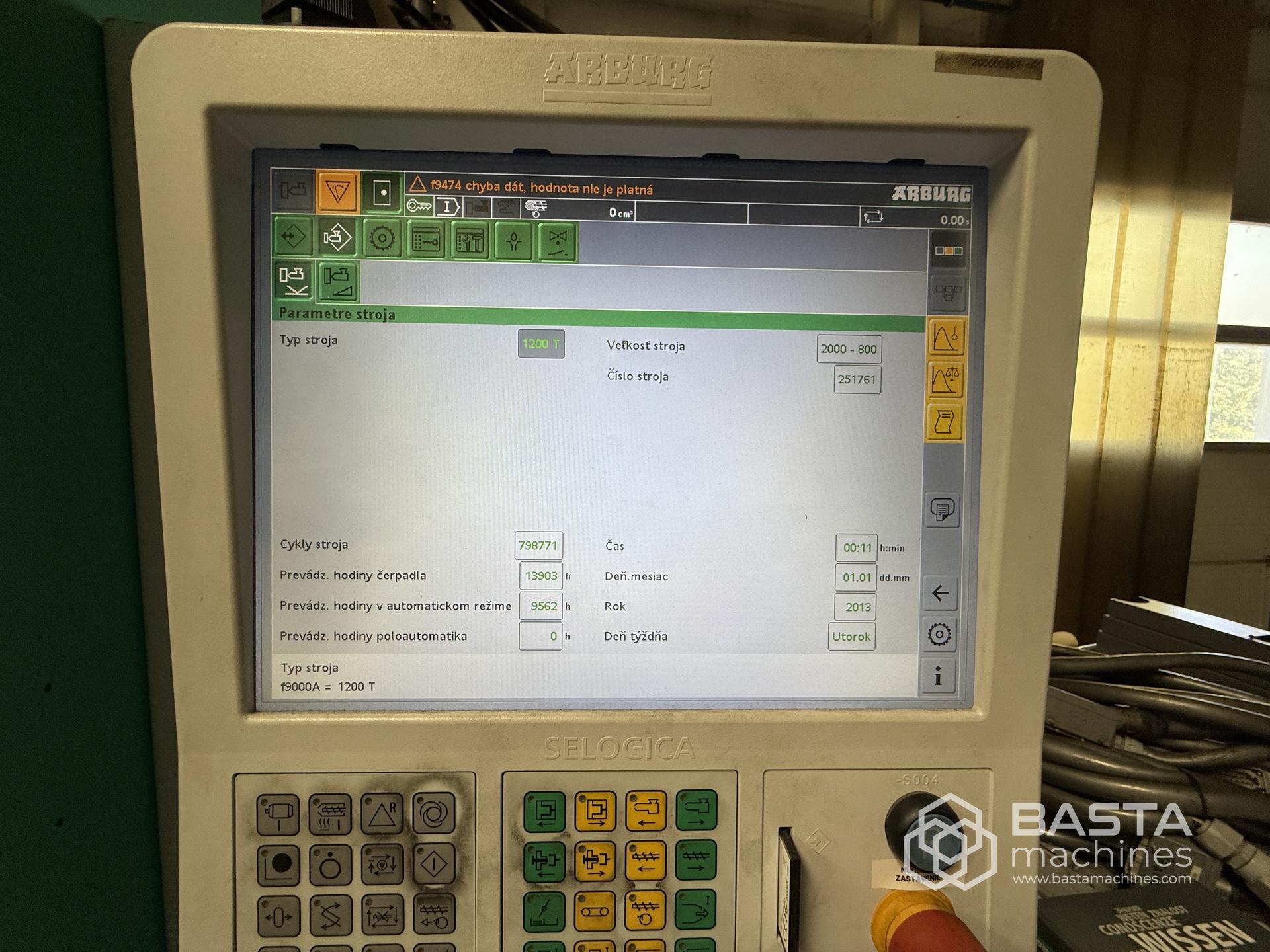

5. Control system: SELOGICA ‘direct’ controller
6. Technology stage: Stage 2 servo-regulated with 2 control pumps
7. Rotary table: Advanced ergonomics special model, 2-station 180° forward/backward alternating
8. Nozzle: Open nozzle 45 mm with nozzle tip
9. In-mould needle nozzles: Electric & hydraulic control for needle nozzle 1, electric & pneumatic control for needle nozzle 2
10. Heating: Heater band for open nozzle, 9 electric heating control circuits for mould heating
11. Clamping platen: Mould mounting platen set, central diameter 125 mm
12. Blow unit: Mould blow unit with pressure reducer at station 1
13. Safety: Optical barrier at loading station, continuous oil cooling and filtration
14. Hopper: Adapter (extension) for feed hopper, machine delivered without 50 L hopper
15. Robot interface: Interface for robot system for station 2 & 3 (based on EM67/1)
16. Electric axes: Basic equipment for electric axes control
17. I/O: 4 programmable inputs/outputs on terminal rail
18. Sockets: Additional socket combination (1 CEE, 1 Schuko)
19. Interfaces: Temperature control device interface (REGLOPLAS), printer USB interface, Compact Flash, EUROMAP 65 chip card user authorisation
20. Acoustic alarm: Error alarm acoustic signal
21. Safety interlock: Interface for safety interlock of door (EUROMAP 73)
22. Cooling circuits: 3 regulated machine-related cooling circuits with flow indicator, 3 manually adjustable cooling circuits for second water manifold
23. Anti-corrosion: Anti-corrosion treatment for rotary table, sealing lip on outer diameter
24. Manual & labels: CD operating manual & spare parts list, Slovak language labels
25. Machine feet: Anti-vibration footplates
26. Other: Hydraulic ejector, external cycle start key, standard equipment packages, new ARBURG colour scheme
27. Display languages: IT/EN/SK
