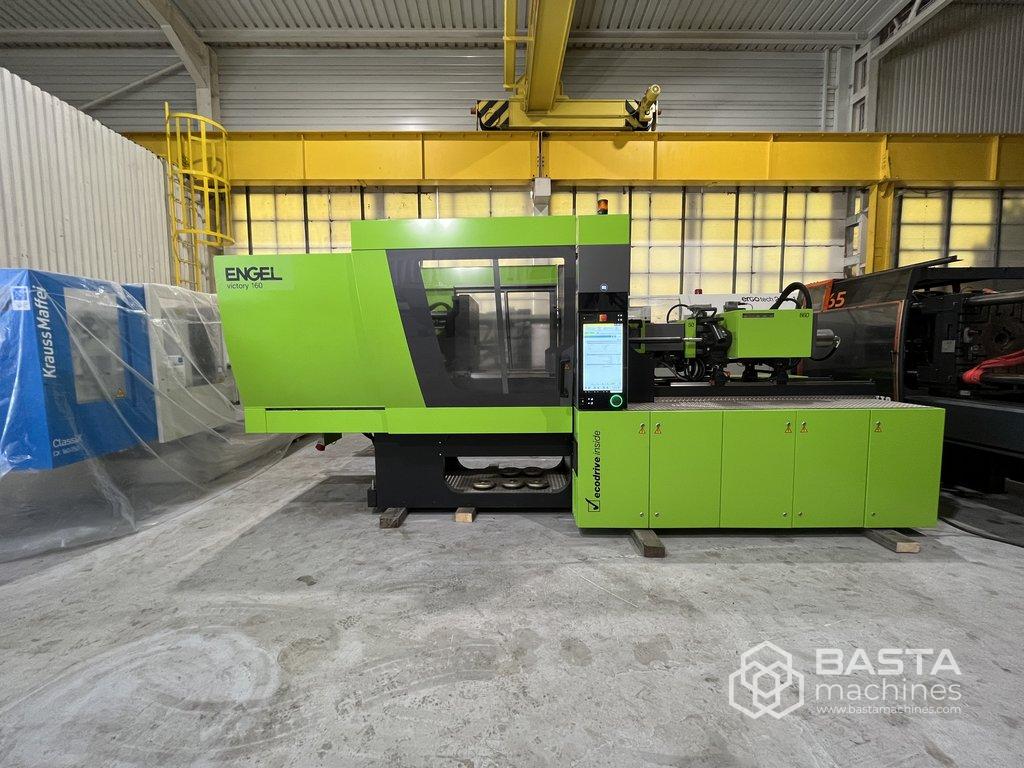

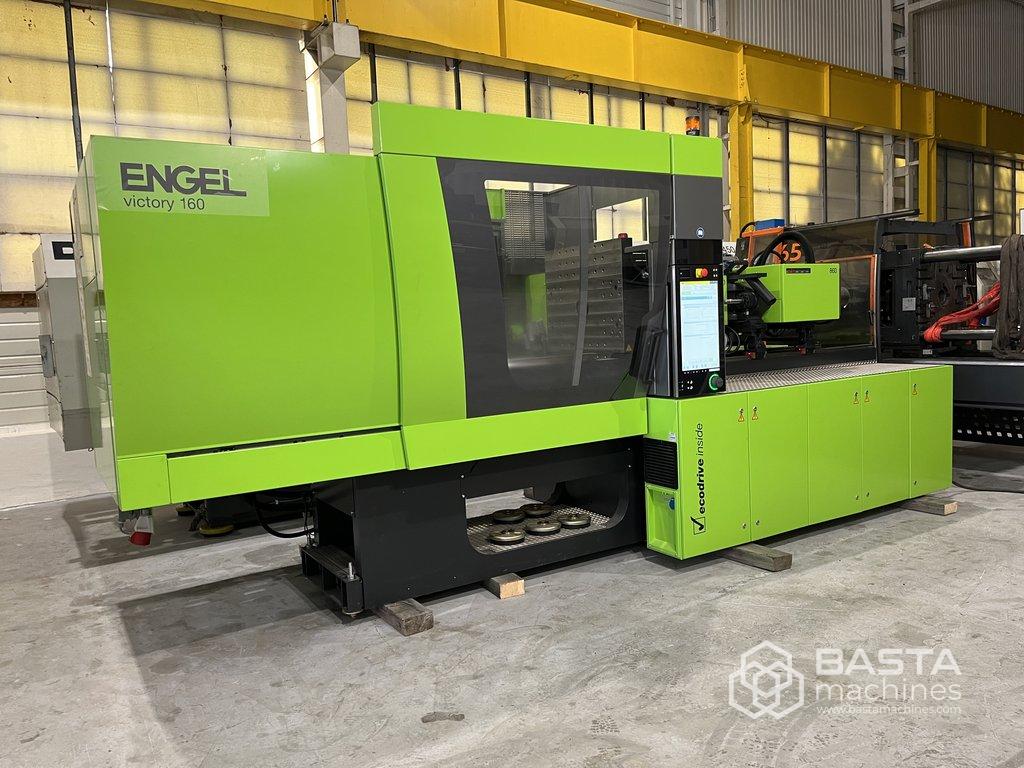

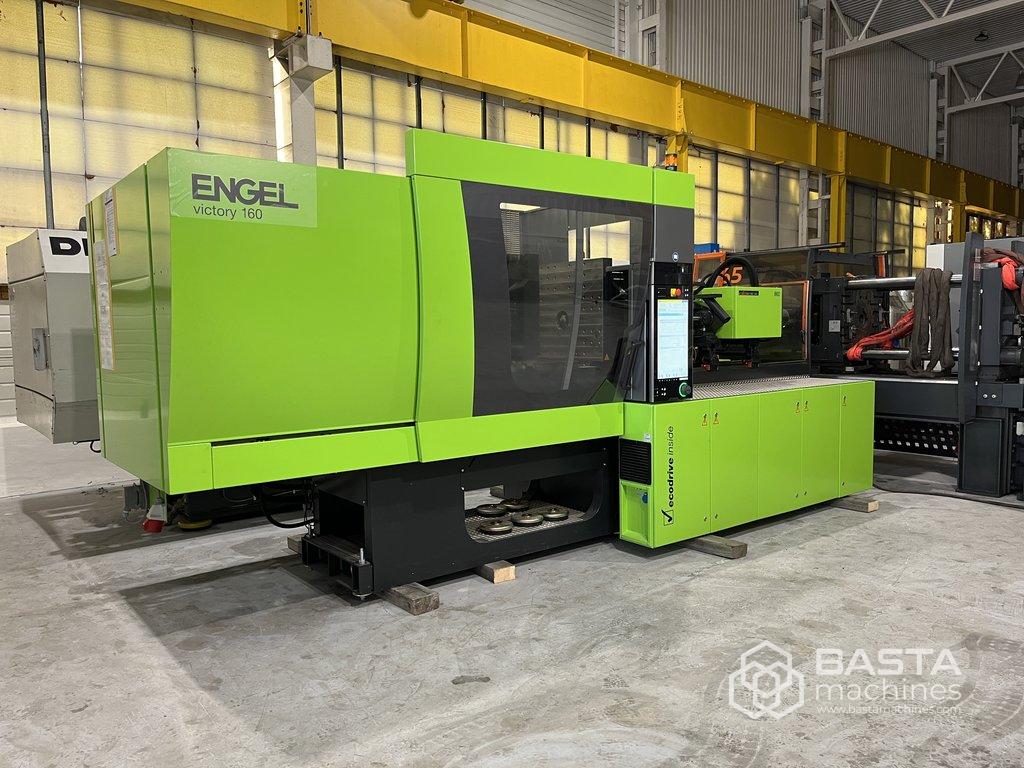

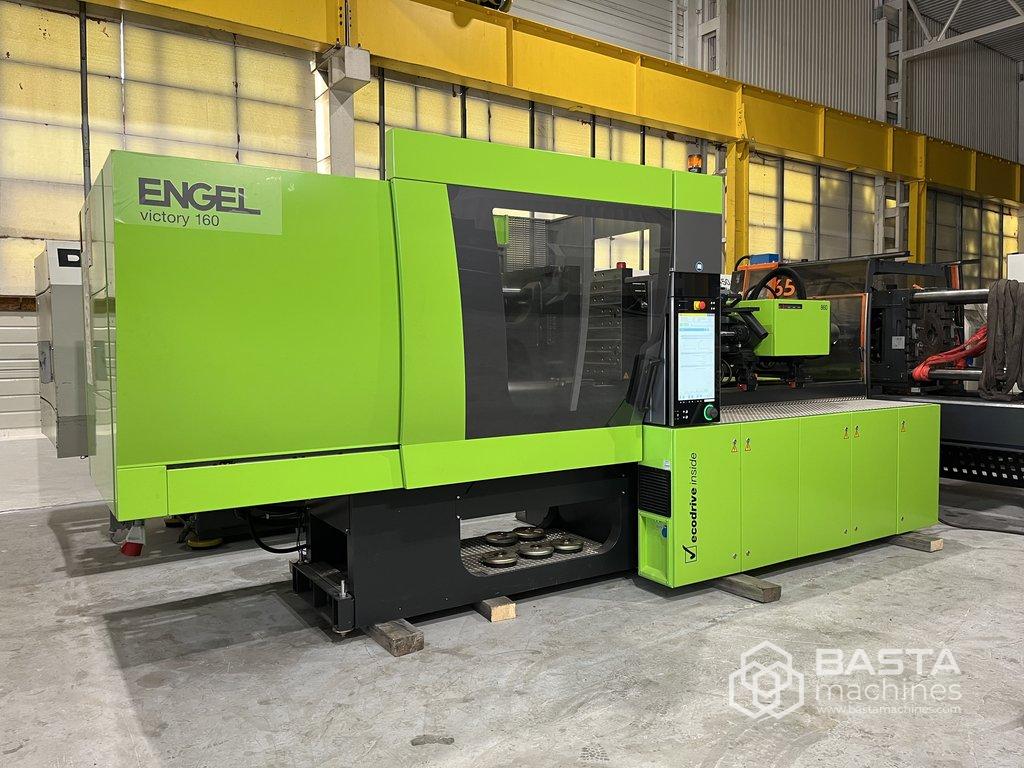

(2019) Engel victory 860/160 tech, Eco drive, new machine

Technical data: Brand: Engel Machine model : VICTORY 860/160 TECH Controll: CC300 - Plasticizing 1: - Screw diameter (mm): 50 - Screw stroke (mm): 220 - Maximum injection capacity (cm³): 432 - Screw speed (min-1): 275 - Screw torque (Nm): 1180 - Recovery rate (3-zone screw) (g/s): 39.9 - Recovery rate (barrier screw) (g/s): 50.9 - Injection 1: - Injection rate (cm3/sec): 295 - Injection pressure (regenerative) (bar): 1455 - Injection pressure (max) (bar): 2000 - Nozzle 1: - Nozzle stroke (mm): 350 - Nozzle contact pressure (kN): 75.4 - Material cylinder 1: - L/D ratio: 20.0 - Heating zones incl. nozzle: 5 - Heating wattage (kWe): 14.6 - Clamping unit: - Clamping force (kN): 1600 - Opening stroke + cylinder tolerance (mm): 605 - Maximum distance between platen (mm): 900 - Minimum mold height (mm): 300 - Platen size horizontal x vertical (mm X mm): 750 x 750 - Drop out chute width (mm): 550 - Maximum mold weight moving platen (kg): 1200 - Maximum mold weight stationary platen (kg): 1200 - Maximum mold weight total (kg): 2400 - Dry cycle (Euromap 6) stroke (mm): 200 - Dry cycle (Euromap 6) time (S): 1.73 - Ejector: - Ejector stroke (mm): 150 - Ejector force (kN): 61.0 - Drive unit: - Drive power main motors (kW): 30.7 - Oil reservoir capacity Injection unit: 330 - Oil reservoir capacity Clamping unit (l): 130 - Maximum cooling power (25°C water inlet temp.) (kWcool): 7.40 - Water consumption 25°C (m3/h): 0.65 - Double hydraulic corepull on moving platen - 8 Zone mould heating control - Languages: English, German, Slovak - Hours: 0 ! new machine - ECO DRIVE - tie-bar-less technology Weight: 9200 kg, Dimensions: L x W x H: 5160 x 1762 x 2371 mm
