2019 Engel Victory 500/120 spex

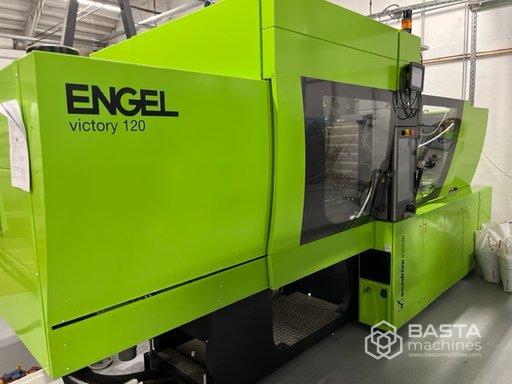

ENGEL Victory 120 Injection Moulding Machine – Tie-Bar Less Machine parameters

Model: ENGEL VC 500/120

Clamping Force: 120 tons

Control System: ENGEL CC300

Technology: Tie-bar-less design (VC – Victory series)

Screw Type: S8

Screw Diameter: 40 mm

L/D Ratio: 20

Drive System: Hydraulic with ECODRIVE SHV1

Additional Equipment: Plate

Platen size HxV: 740x680mm

Min Mould height: 300 mm

Maximum distance between platens: 800mm

Key Features:

1. Modern tie-bar-less concept for flexible mould area access
2. High energy efficiency due to ECODRIVE technology
3. Precise control with ENGEL CC300 system
4. Robust hydraulic unit designed for demanding cycles

Applications:

1. Plastic injection moulding for small to medium-size parts
2. Suitable for various materials depending on configuration
