PLASTIC MACHINE

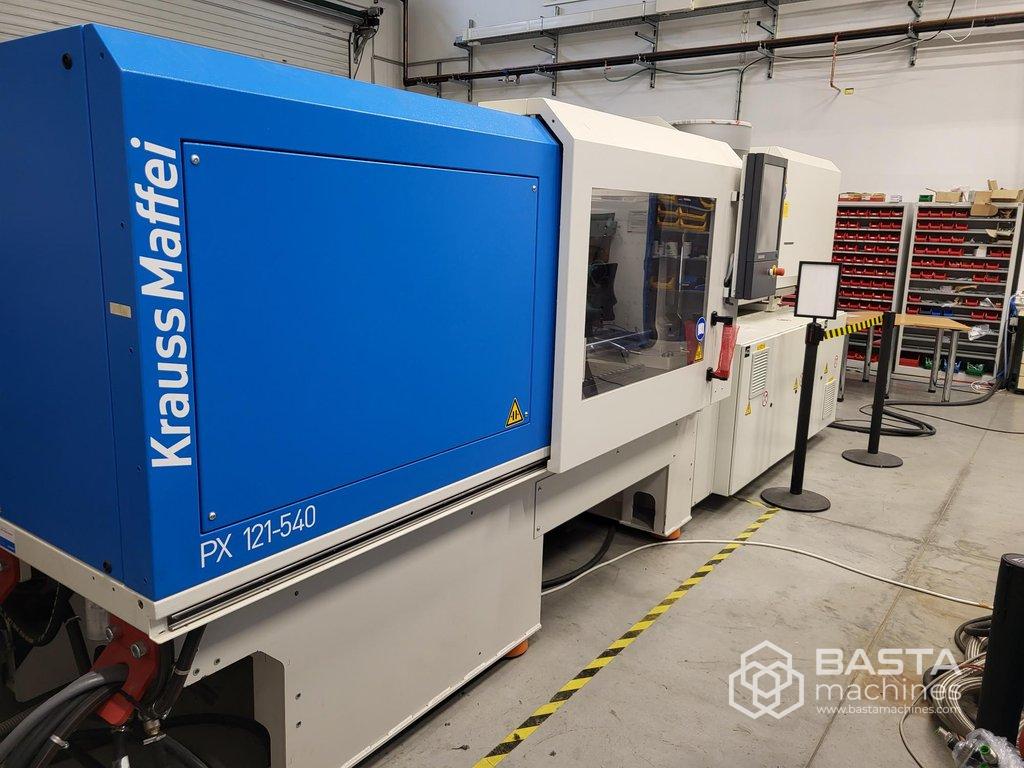

(2017) Krauss Maffei 121-540PX (only 100 hours) Electric machine
Sold
Overview
Condition
New
Manufacturer
Krauss Maffei
Model
121-540PX (new machine 100hours!)
Year
2017
Stock number
00902
Description
MC6 controll Injection
Unit - Screw diameter: 40 mm
Shot weight: 206 g/ps
Stroke volume: 226 CM³
Injection pressure: 2377 bar
Plasticizing rate max.: 24 g/s ps
Screw speed: 297 1/min
Heating capacity: 12,9 kw
Clamping unit - Clamping force: 1200 kn
Distance between bars: 530 x 480 mm
Mould height min: 180 mm
Mould height max: 450 mm
Size of mold platens: 710 x 660 mm
Ejector stroke: 175 mm
Ejector force for / back: 22/10 kn
Equipment: - Robot interface as per euromap 18, euromap 67
5 adjustable barrel heating zones
2 core pullers
4-fold waterbattery
