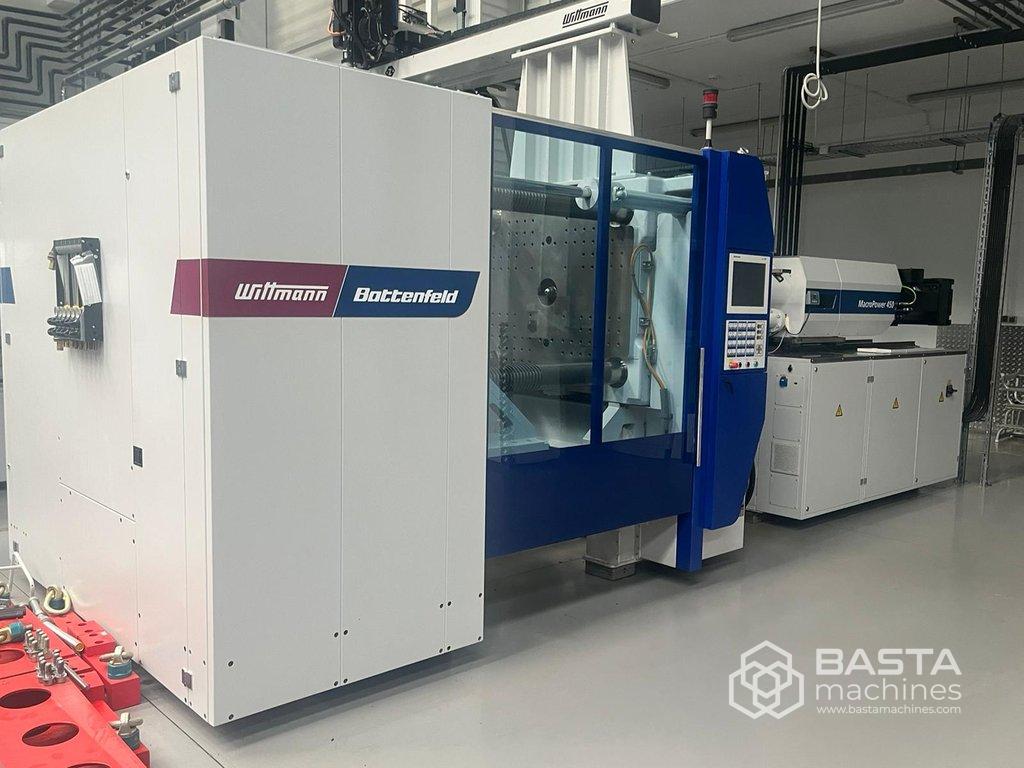

(2014) Wittmann Battenfeld Macro Power E450/2250 Unilog B6 like new(Servo machine)

Serial Number: 135424-100 Model: MacroPower E 450/2100+ UNILOG B6P (SERVO) Control: UNILOG B6 Technical Data Injection Unit Screw diameter = 65 mm Screw L/D ratio = 22 Specific injection pressure = 1959 bar Calculated stroke volume = 1062 cm3 Max. injection weight (PS) = 966.4 g Technical Data Clamping Unit Clamping force = 4500 kN Clear distance between tie bars = 900x750 mm X mm (VxH) Min. mold installation height = 330 mm Max. mold installation height = 780 mm Max. distance between plates = 1380 mm Opening stroke = 1050 mm ---------------------------------------------------------------------------- ServoElectric injection unit Servo Packaet S0 ServoPower package S1 (hydraulic pump speed control for increased energy efficiency), integrated filter unit Injection unit: servo electric (Knodler) with jet actuator, injection speed 400 mm/s (servo injection control significantly reduces electricity costs and supports precise regulation injection process) Electric ejector with a force of 60 KN and a path of 180mm Additional equipment: 1. Air valve 2. Cooling water flow regulator 3. Digital interface for the temperature regulator (possibility of controlling six thermoregulators simultaneously) 4. Interface for controlling the needle cutting off the nozzle in the tool 5. Interface for controlling the external hot runner regulator 6. Full integration for the Wittmann W8xx series robot 7. Button for quality control Videos and more photos from test available on request. Possible to buy with Wittmann Linear robot , temperation units, conveyor, external heating zones etc, check our website for all information. More information let us know.
