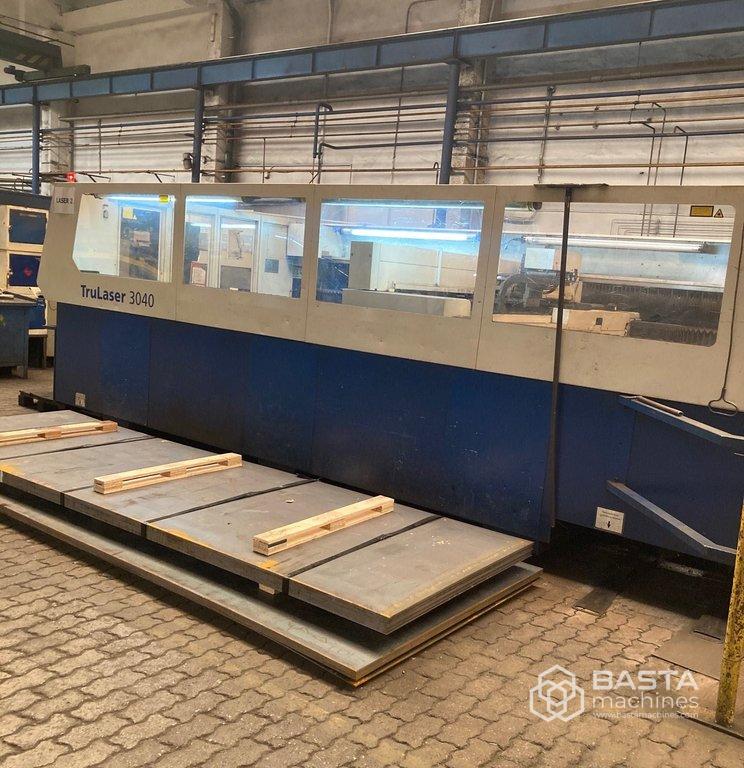

2007 TRUMPF TruLaser 3040, type of laser TruFlow 4000
Overview
Description
Working area X 4000 mm, Y 2000 mm, Z 115 mm
Weight 16000 kg parameters
L x W x H: approx: 9800 mm x 5300 mm x 2000 mm
Siemens Sinumerik 840 D type of laser
TruFlow 4000 W
max thickness 20 mm
4000 mm x 1250 mm feed 3400 mm Dismantling, loading, crane is not in price of machine - plus price per all services
NC: 88631 - Resonator/HD
pump 1: 87603 - Beam on/pump 2: 53667
Technical parameters:- Designation: KNC/H 1500/65- Maximum temperature: 650 °C- Recommended operating temperature range: 300°C – 600°C- External dimensions approx. (wxhxd): 2800x3200*x2100mm * height including structure for door when hydraulically opening- Internal dimensions (wxhxd): 1500 x 1000 x 1000 mm- Number of heating zones: 1- Maximum batch weight: 1000 kg- Melting power: 48 kW- Furnace weight: 1300 approx. kg- Voltage: 3/PEN 400/230V AC 50 Hz- The damper is part of the furnace, serves for automatic temperature control in the furnace and is controlled by the program from the controller. - includes technical documentation in Slovak - protocol of measurement and optimization of the temperature field to meet the DIN 17052-1 standard ΔT10°C in the internal working space (in an empty furnace at Tmax)
- Technical documentation is in SJ.
Manufacturer: LAC, s.r.o., Czech Republic
Year of Production: 2021
This is an electric furnace, the heating system of which consists of heating resistance elements located near the fan unit. Through the heating branches, the fan ensures circulation of the atmosphere in the heating space and thus heating of the working atmosphere and the charge in the furnace. The working chamber of the furnace is equipped with a separately regulated heating unit in the rear wall of the furnace. The furnace is equipped with a radial circulation fan with a horizontal shaft to ensure uniform temperature distribution throughout the working space of the furnace. The circulation fan drives the heated air through the circulation channels of the circulation insert. All rotating parts are located under a cover against accidental contact. The temperature profile of the device is controlled by a PID programmable INDUSTRY controller. This controller allows the creation of up to 30 heat treatment programs depending on the needs of the processing technology and the properties of the processed batch. Dimensions see. appendix.
