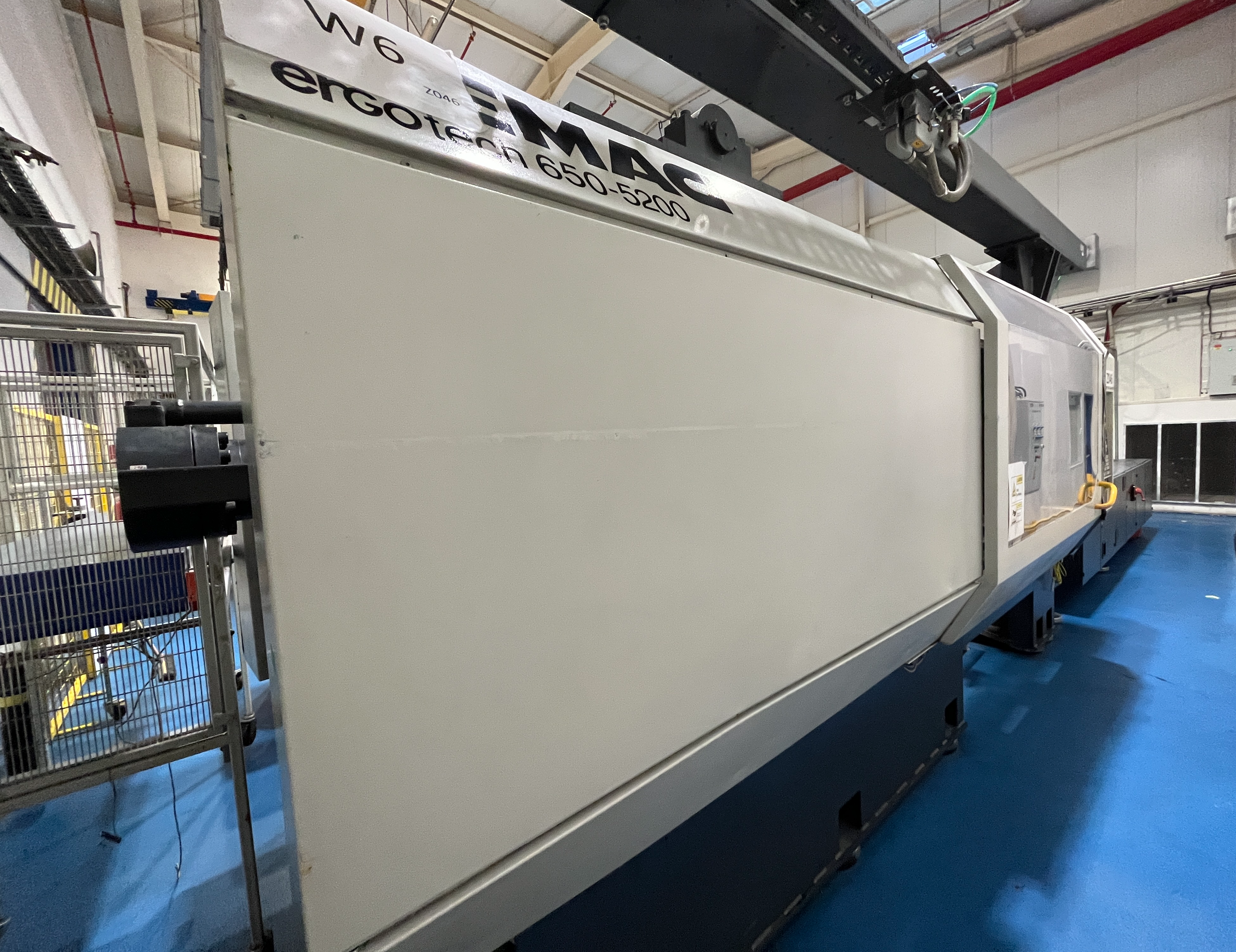

(1996) Demag Ergotech 6500-5200

Clamping force: 650 tons Max. mould opening stroke: 930 mm Min. mould mounting height: 450 mm Max. mould mounting height: 950 mm Max. daylight between platens: 1880 mm Overal size of platens h x v: 1450 x 1350 mm Daylight distance between tie bars h x v: 1000 x 900 mm Max mould weight: 8600 kg Screw diameter: 95 mm Injection pressure: 1832 bar Injection volume: 2835 cm3 Shot weight (PS) : 2550 g Control system: NC4 Weight: 37t Core 1x Transport parameters: - Injection unit: L 5700 x W 1820 x H 2100 mm, 13 t - Clamping unit: L 5100 x W 2500! x H 2600 mm, 24 t plus price for accessories: Conveyor Cage Robot Wittmann 2 vacuum circuits and 2 grip circuits, Axis: X- 1200, Y- 2200, Z- 5500
