METAL MACHINE

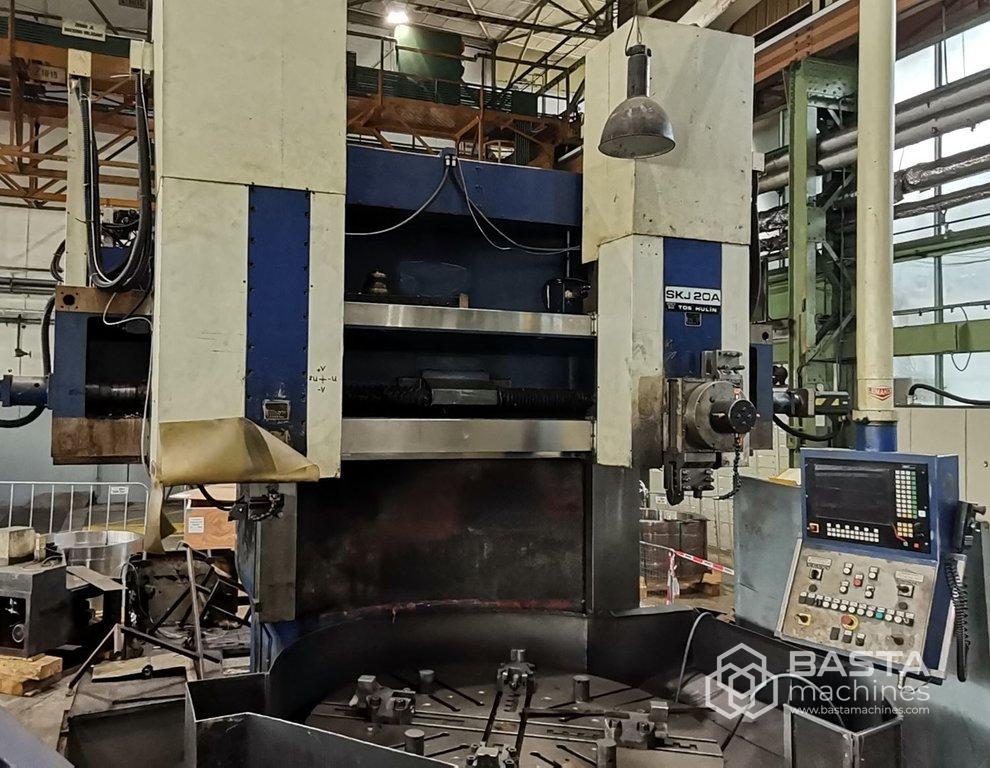

1972 TOS SKJ 20 A CNC
Sold
Overview
Condition
Repair required
Manufacturer
TOS
Model
SKJ 20 A CNC
Year
1972
Stock number
00172
Description
- FOR REPAIR. An overhaul is required.
- Made in 1972 in TOS Hulin Czechoslovakia. Retrofit was in 2006
- 100 kW
- turning diameter 2100 mm face
- turning diameter 2000 mm vertical
- maximum height from the clamping plate to the lower edge of the turret 1520 mm
- clamping plate diameter 2000 mm
- maximum workpiece height 1500 mm
- largest workpiece diameter 2300 mm
- maximum workpiece weight approx. 15000 kg
- MEFI 859 CNC control system, number of controlled NC axes 4
- machine floor plan 3500x5800 mm
- max. height with extended slides 5100 mm
- machine weight with el. box and aggregates approx. 40,000 kg
- Technical documentation available on paper and electronically.
