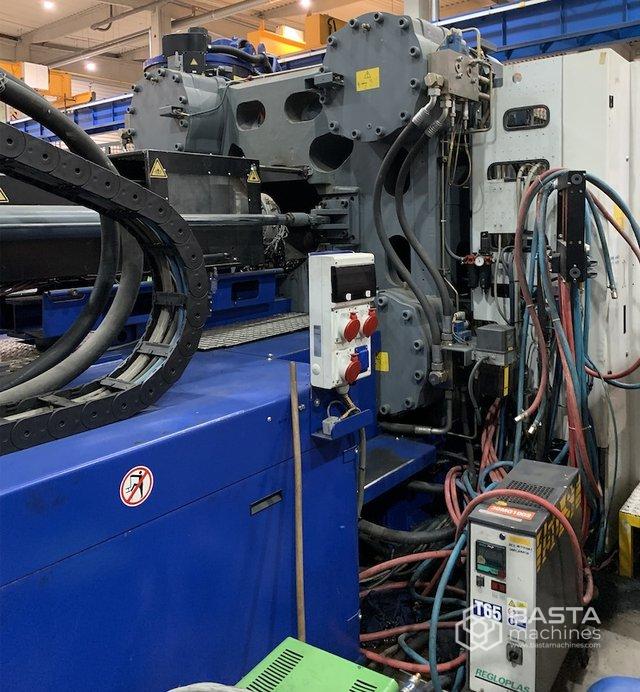

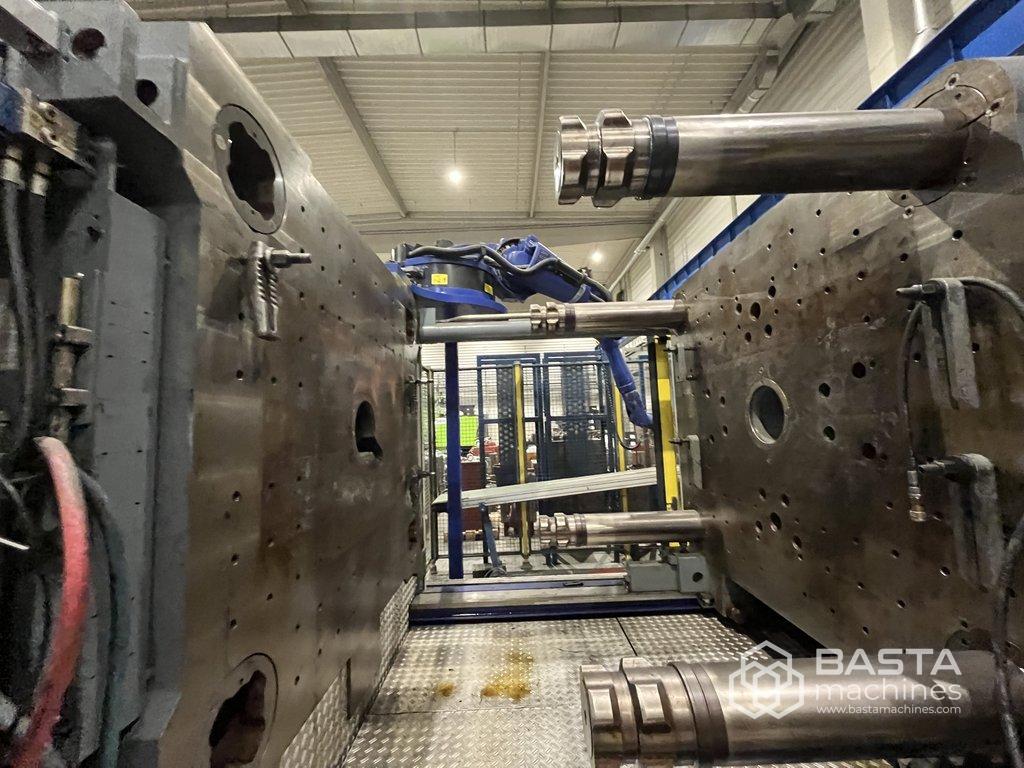

1000 ton Battenfeld, KUKA robot 6 axes (2004)

Brand: Battenfeld Model: HM10000 2P/7700 Clamping force: 1000 t Platen dimensions: 1960 x 1690 mm Min mould heigh/max mould height :300x830 mm Tie Bar distance (HxV): 1400 x 1120 mm Tool height min/max: 500- 1050 mm Plates distance max: 2350 mm Injection unit 7700 Screw diameter: 75 mm Injection volume : 1878 cm3 Shot weight (PS): 1709 g/PS Specific pressure: 2389 bar Hydraulic cascades : 6 Cores: 3 Additional temperation unit: 24 + KUKA ROBOT (KRC2)
